Industrial Communications

Xilinx® All Programmable solutions for Industrial Networking form the most versatile platforms that provide scalability and flexibility for factories. The computing capabilities of Xilinx devices match perfectly the needs of powerful Ethernet-based protocol for real-time communication. Profinet, EtherCAT, EtherNet/IP, Powerlink, and many more are supported by IP Cores from industry leading Alliance partners. Acceleration in hardware allows fulfilling strictest real-time and latency requirements and follows the evolution of standards easily.

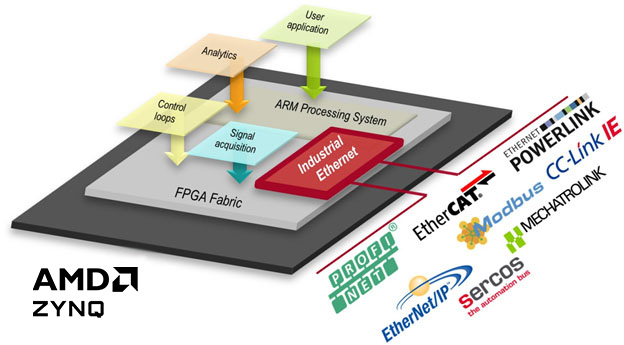

It's cost efficient and compact. Xilinx technology lets you the network with applications, hardware-accelerated analytics, control loops and other logic like encoder interfaces. Single-chip PLCs are easily possible. Self-contained IP cores guarantee the modularity that you need for platforms on which you can build product variants easily and fast.

Protocol Type Provider Availability Device Family Support
Profinet RT/IRT Device Softing Q3/2014 Artix-7
Profinet IO Device port GmbH Available Zynq-7000, Spartan-6
Ethernet/IP Scanner and Adapter Ixxat On Request Zynq-7000, Spartan-6
Ethernet/IP Adapter Enclustra Q2/2015 Zynq-7000, Artix
EtherCAT Slave Beckhoff Available Zynq-7000, Artix-7, Spartan-6, Virtex-6
EtherCAT Master Ixxat Available Zynq-7000
Ethernet POWERLINK Controlled Node B&R Available Zynq-7000, Spartan-6
Ethernet POWERLINK Controlled Node + Managing Node B&R Available Zynq-7000, Spartan-6
Modbus-TCP Slave Ixxat Software Solution Zynq-7000, Artix-7, Spartan-6
Sercos III Slave + Master Sercos International e.V. Available Spartan-6
CC-Link IE Slave inrevium On Request Zynq-7000
Mechatrolink III Slave + Master inrevium Available Zynq-7000

Reference Designs

  • Profinet RT/IRT on Avnet AC-701 + ISMNET: Softing
  • Fast EtherCAT Drive on Xilinx ZC702 and Avnet Zedboard: QDESYS
  • POWERLINK CN on Avnet Spartan-6 LX16 board: B&R
  • POWERLINK MN on Zynq: B&R
  • EtherCAT Master on Xilinx ZC702 or Avnet Zedboard: QDESYS
Protocol Type Provider Availability Device Family Support
Profinet RT/IRT Device Enclustra Available (RT)
Q1/2015 (IRT)
Zynq-7000, Artix-7
Profinet RT/IRT Device Softing Q3/2014 Artix-7
Profinet IO Device port GmbH Available Zynq-7000, Spartan-6
Ethernet/IP Scanner and Adapter Ixxat On Request Zynq-7000, Spartan-6
Ethernet/IP Adapter Enclustra Q2/2015 Zynq-7000, Artix
EtherCAT Slave Beckhoff Available Zynq-7000, Artix-7, Spartan-6, Virtex-6
EtherCAT Master Ixxat Available Zynq-7000
Ethernet POWERLINK Controlled Node B&R Available Zynq-7000, Spartan-6
Ethernet POWERLINK Controlled Node + Managing Node B&R Available Zynq-7000, Spartan-6
Modbus-TCP Slave Ixxat Software Solution Zynq-7000, Artix-7, Spartan-6
Sercos III Slave + Master Sercos International e.V. Available Spartan-6
CC-Link IE Slave inrevium On Request Zynq-7000
Mechatrolink III Slave + Master inrevium Available Zynq-7000
