Test & Measurement Instrumentation

Realizing Wide Signal Bandwidth and Multi-functional Real-time Instruments

Signal analysis equipment, e.g. Spectrum/Network Analyzers, can realize wider bandwidths by leveraging significantly large number of DSP blocks available in the 16nm UltraScale+ family. High IO bandwidth and Hard IP realize effective implementation of IO functionality.

Design Examples Description Device Support

Click to enlarge

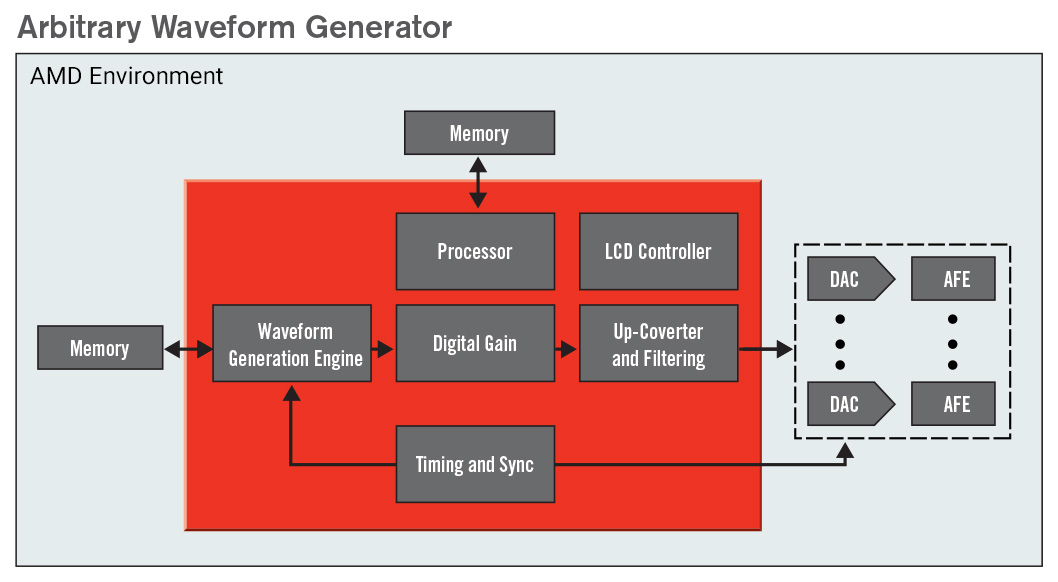

Arbitrary Waveform Generator
Zynq® UltraScale+™ MPSoC with its rich DSP resource to implement compensation filter and Digital gain, rich memory content for buffering waveform samples, processor for control and SerDes to interface to high-speed DACs and memory makes it an ideal device for AWG application.

Zynq UltraScale+ MPSoC

Click to enlarge

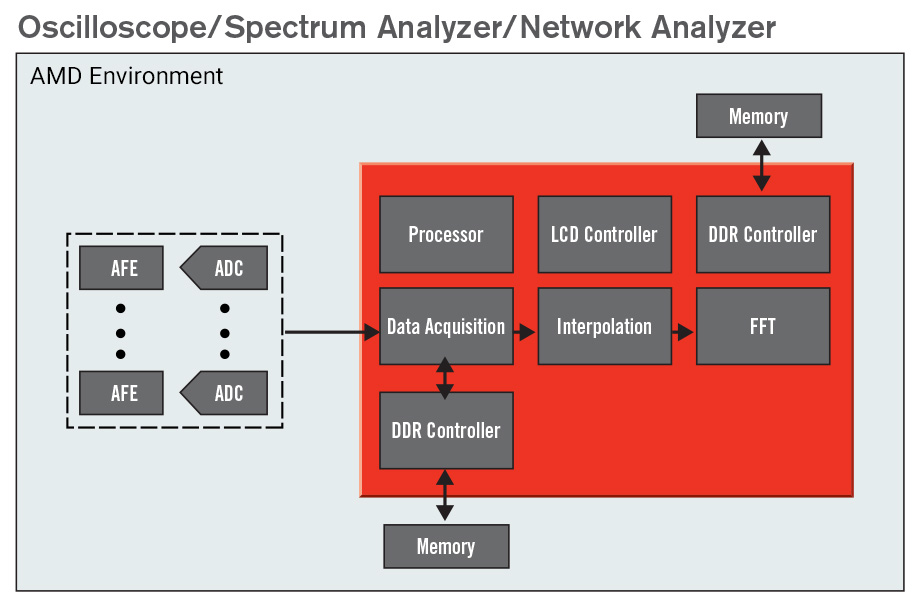

Oscilloscope/Spectrum Analyzer/Network Analyzer
Low-to-Mid-end instrumentation calls for integrated and scalable solutions so as to have quick development time as well as low development and support cost. Zynq UltraScale+ MPSoC is a perfect match for these application given the right set of feature mix including DSP, Processors, Memory and SerDes as well as scalability/package migration offered by the Zynq family.

Zynq UltraScale+ MPSoC
