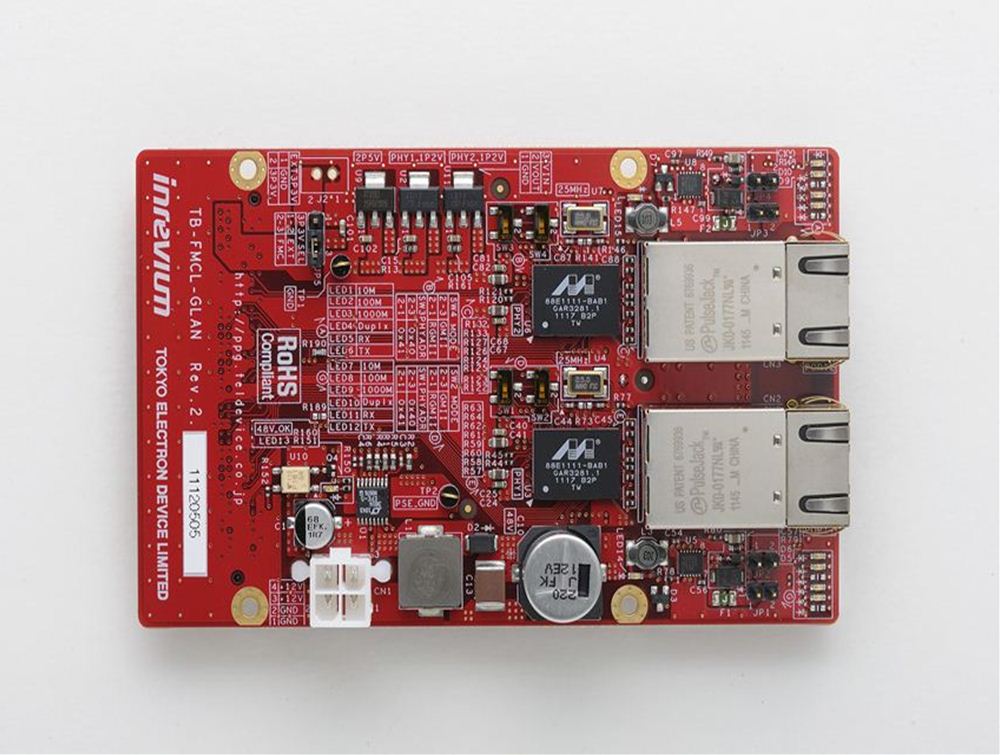

1000 Base-T Ethernet Card

  • Part Number: TB-FMCL-GLAN-B
  • Device Support:
  • Vendor: Tokyo Electron Device Ltd.
  • Program Tier: Certified

Product Description

The 1000 Base-T Ethernet FMC Connectivity mezzanine card is designed to provide two Ethernet ports which support 1000 Base-T standard PHY functions with the connection between FMC (LPC) connector. The FMC LPC connector found on Xilinx FMC-supported boards including TB-6S-LX150T-IMG2 and New type boards. PHY Chip (Marvell:88E1111-B2B-BAB1C000)


Key Features and Benefits

  • Two Ethernet ports which support 1000 Base-T standard PHY functions with the connection between FMC (LPC) connector

What's Included

  • Ethernet PHY : Marvell’s 88E1111-B2-BAB1C000
  • FMC Connector : Samtec’s ASP-134604-01
  • PSE Controller : Linear’s LTC4263CDE-1
  • Power Supply (ATX ) : Molex’s 39-29-9042
  • RJ45 Connector : Pulse’s JK0-0177NL
