Artix-7 50T FPGA Evaluation Kit

  • Price: $239
  • Part Number: AES-A7EV-7A50T-G
  • Device Support:
  • Vendor: Avnet
  • Program Tier: Premier

Product Description

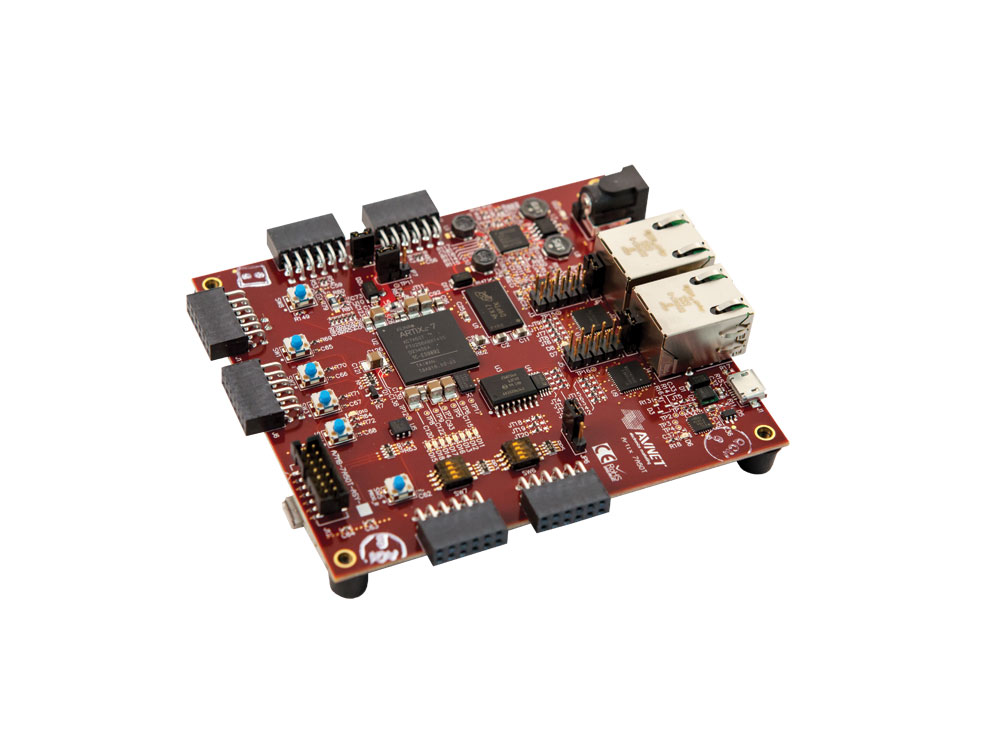

The Artix-7 50T FPGA Evaluation Kit, designed by Avnet, is a completely customizable development kit perfect for embedded designers looking for a flexible, low-power platform. The Artix-7 50T FPGA evaluation board is a complete system, packaging all the necessary functions and interfaces needed for an embedded processor system onto a small footprint. This board is the perfect solution for designers interested in exploring the MicroBlaze soft processor or Artix-7 FPGAs in general. Experienced FPGA users will find the Artix-7 50T FPGA evaluation board a valuable tool for general purpose prototyping and testing. The included peripherals and expansion interfaces make the kit ideal for a wide variety of applications. From evaluating Industrial Ethernet protocols to integrating multiple sensors to running a Linux-based web server, the Artix-7 50T FPGA evaluation board can help you validate your next design idea.


Key Features and Benefits

  • 10 user LEDs
  • 12 connected to Pmods
  • 16 AMS inputs
  • 200 MHz LVCMOS Oscillator (system clock)
  • 256 MB DDR3 SDRAM
  • 32 KB of I2C EEPROM
  • 32 MB of QSPI Flash
  • 4 for power monitor circuit
  • 5 user push button switches
  • 512b EEPROM with SHA-256 authentication engine
  • 6 Digilent compatible Pmod™ interfaces enabling 48 user I/O pins
  • 8 user DIP switches
  • Dual 10/100 Ethernet Interfaces
  • JTAG Programming/Configuration Port
  • Paired to fit dual-wide Pmods
  • Routed as differential pairs
  • Support IEEE1588
  • USB-UART Interface
  • Xilinx PC4 and Digilent SMT2
  • Xilinx XC7A50T-1FTG256C

What's Included

  • 10 user LEDs
  • 12 connected to Pmods
  • 16 AMS inputs
  • 200 MHz LVCMOS oscillator (system clock)
  • 256 MB DDR3 SDRAM
  • 32 KB of I2C EEPROM
  • 32 MB of QSPI Flash
  • 4 for power monitor circuit
  • 5 user push-button switches
  • 512b EEPROM with SHA-256 authentication engine
  • 6 Digilent compatible Pmod™ interfaces enabling 48 user I/O pins
  • 8 user DIP switches
  • Dual 10/100 Ethernet interfaces
  • JTAG programming/configuration port
  • Paired to fit dual-wide Pmods
  • Routed as differential pairs
  • Support IEEE1588
  • USB-UART interface
  • Xilinx PC4 and Digilent SMT2
  • Xilinx XC7A50T-1FTG256C
