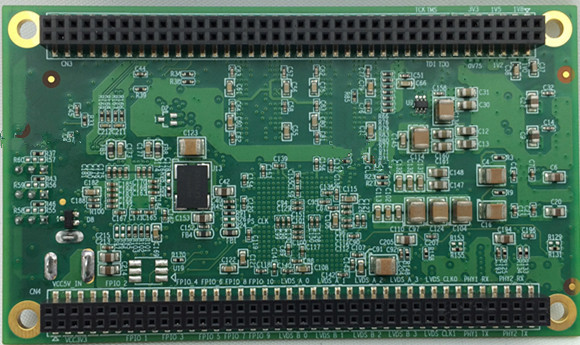

ZYNQ PLC SoM

  • Part Number: ZYNQ PLC CORE
  • Device Support:
  • Vendor: Newtouch Electronics (Shanghai) Co.,Ltd.
  • Program Tier: Certified

Product Description

The ZYNQ PLC SoM from Newtouch Electronics(SHANGHAI) Co., Ltd. is designed for Industrial applications, specifically Real time industrial Ethernet applications, such as real time industrial communication module.


Key Features and Benefits

  • Board Size: H55xW95(mm)
  • Clock: PS, PL
  • Debug Interface: JTAG, LED
  • Device : XC7Z010-1CLG400I
  • Expansion IO Connector: Two 80 Position Connector 2.00mm Pich (PL IO:40/PS IO:11)
  • General Purpose Interface: Gigabit Ethernet x1, Fast Ethernet x2, Socket for microSD card
  • Memory: DDR3 SDRAM 256MByte, QSPI Flash 16MByte
  • Operating Temperature: -20℃ ~ +70℃
  • Power Supply: Single DC 5V operation

What's Included

  • Industrial Ethernet reference design
  • ZYNQ PLC Module
