EagleGo HD

  • Part Number: EagleGo HD
  • Device Support:
  • Vendor: V3 Technology, Ltd.
  • Program Tier: Certified

Product Description

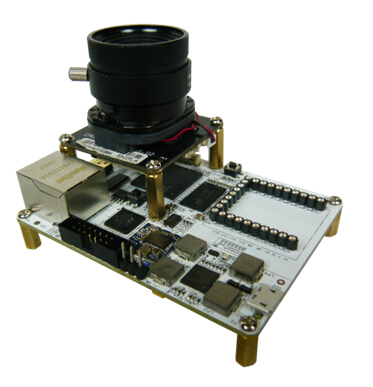

The EagleGo HD embedded vision kit is built on the Zynq-7000 SoC with seamlessly integrated ARM Cortex-A9 Processors and FPGA logic. EagleGo HD enables customers to create well differentiated and powerful designs in the area of Industrial Control, Machine Vision, Video image processing, and Test and Measurement.

Key Features and Benefits

  • Zynq-7000 XC7Z020-1CLG400
  • 512MB DDR3 SDRAM(2*256MB),32bit Data
  • USB Debug port
  • HDMI High Definition Output port, supporting 1080P display
  • TF Inerface, standard 8G memory card
  • 10/100/1000 Mbps Ethernet interface
  • 27 Pin Microduino compatible port, suporting over 40 Microduino modules
  • Sony 1080p HD image sensor

What's Included

  • 8GB TF card
  • EagleGo HD development board
  • Gb Ethernet Cable
  • Sony 200M 1080p image sensor (with Camera)
  • USB2.0 Cable
  • Xilinx FPGA simulator
  • Xilinx SDSoC Tools license for 1 year (Original cost $995)
