TySOM-2-FMC-IoT

  • Part Number: TySOM-2-FMC-IoT
  • Device Support:
  • Vendor: Aldec, Inc.
  • Program Tier: Member

Product Description

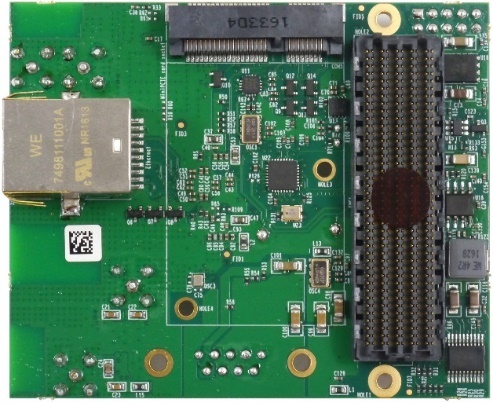

TySOM-2-FMC-Vision daughter board is designed to provide wide range of interfaces used in IoT application. It includes Ethernet Interface supporting IEEE 1588, Wi-Fi and Bluetooth 4.01, Zigbee, 6LoWPAN, RF4CE, SP100, wirelessHART and Sub-GHz (Sigfox, WMBus) interfaces, SATA interface, 2× user clock, 1× clock for SATA, mPCIe, USB 2.0 and Micro SIM both for Mini PCI Express card), RS485/Profibus interface and 2×6 Digilent Pmod Compatible Header. This daughter board is compatible with the boards that support FMC HPC connector such as TySOM-2-7Z045, TySOM-2-7Z100 and TySOM-2-7Z030.


Key Features and Benefits

  • Bluetooth & Wi-Fi
  • Ethernet IEEE 1588
  • FMC HPC connector
  • Pmod
  • RS-485
  • SATA
  • SIM card reader
  • USB 2.0
  • mPCIe

What's Included

  • 2x6 Digilent PmodTM Complatible Header
  • 64 kb EEPROM
  • Bluetooth Interface (Bluetooth 4.1 compliance) with BLE
  • Ethernet Interface with support IEEE 1588 Time Stamps
  • FMC HPC standard connector compliant with VITA 57.1-2010
  • Micro SD Card Socket
  • Micro SIM Card Socket (for Mini PCI Express Card)
  • Mini PCI Express Card Socket
  • RS-485/Profibus Interface
  • SATA interface
  • Sub-GHz Interfaces (Sigfox, WMBus, Interfaces compliant with 802.15.4g)
  • USB 2.0 Transceiver (for Mini PCI Express Card)
  • Wi-Fi Interface (support IEEE 802.11a, 802.11b, 802.11g and 802.11n standards)
  • ZigBee, 6LoWPAN, RF4CE,SP100, WirelessHART Interfaces (interfaces compliant with IEEE 802.15.4 standard)
