Xilinx Virtex UltraScale FPGA VCU110 Development Kit

  • Price: $15,995
  • Part Number: DK-U1-VCU110-G
  • Lead Time: 2 weeks
  • Device Support:

Product Description

The Virtex® UltraScale™ FPGA VCU110 Development Kit is the perfect development environment for evaluating the unprecedented levels of performance, system integration and bandwidth provided by Virtex UltraScale devices.

This kit provides an ideal platform for developing systems requiring massive data throughput such as 400+ Gbps systems and 28 Gbps backplane applications.


Key Features & Benefits

  • 4 CPF4 Optical Interfaces
  • 28 Gbps Backplane Interface
  • 20 GTY Interlaken Interface
  • 2 FMC HPC Interfaces
  • 2GB HMC Memory
  • 1Gb RLDRAM 3 Memory
  • 144-Mbit QDR II+ SRAM
  • Dual 512MB Quad-SPI flash memory

Board Features

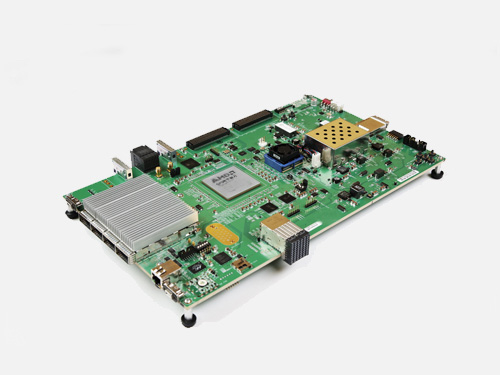

Featuring the VCU110 Development Board

dk-u1-vcu110-es-g-board

Configuration

  • Onboard JTAG configuration circuitry to enable configuration over USB
  • JTAG header provided for use with Xilinx download cables such as the Platform Cable USB II
  • 1 Gb Quad-SPI flash memory

Memory

  • 2GB Hybrid Memory Cube (HMC) Serial Memory (32 GTHs)
  • 144 Mb QDRII+ component memory interface
  • 1152 Mb RLD3 component memory interface
  • MicroSD Card slot

Clocking

  • SI5335A Quad Clock Generator
  • Si570 IIC Programmable LVDS Clock Generator
  • Multiple SI5328C Clock Multiplier and Jitter Attenuator
  • User Clock inputs on BullsEye cables and discrete SMA connectors

Display

  • User & Status LEDs

Communication & Networking

  • Quad 100G CFP4 Interface (16 GTYs)
  • Tyco Backplane connector (8 GTYs)
  • 20 Lane Interlaken connector (20 GTYs)
  • PCI Express Gen3 x4 cable connector (4 GTHs)
  • Dual BullsEye Connector pads (8 GTYs)
  • Dual USB-to-UART Bridge with micro-USB connector 10/100/1000 Mbps Ethernet (RGMII)

Expansion Connectors

  • FMC HPC0 connector (8 GTHs)
  • FMC HPC1 connector (8 GTHs)
  • PMOD (2x6 0.1" Header)

Power

  • AC Power adapter (12V)

Analog

  • PMBus connector for voltage and current monitoring through Maxim power controllers and GUI.

Control & I/O

  • User Push Buttons (x5)
  • User DIP Switch (4-position)

Featured Xilinx Devices

Featuring the ROHS compliant VCU110 kit including the XCVU190-2FLGC2104E FPGA

System Logic Cells (K) 2,350
DSP Slices 1,800
Memory (Mb) 132.9
GTH 16.3 Gb/s Transceivers 60
GTY 30.5 Gb/s Transceivers 60
I/0 Pins 702
virtex-ultrascale-bk-chip

What's Inside

VCU110 Development Board

Featuring the Virtex UltraScale XCVU190-2FLGC2104E FPGA

Access to a full seat of Vivado® Design Suite: Design Edition

Device-locked to the XCVU190

CFP4 Electrical Loopback Module

FMC Loopback Boards

Interlaken Cable and Loopback Board

Backplane Loopback Board

BullsEye Cable and Adapters

Ethernet Cable

Mini Cable

Micro USB Cable

Power Adapter

Power Cord


Featured Partner

maxim-integrated

Design Tools

Name Description License Type
Vivado Design Suite Design Edition The Xilinx Vivado® Design Suite is a revolutionary IP and System Centric design environment built from the ground up to accelerate the design for all programmable devices. Node locked & device-locked to the Virtex UltraScale VU190 FPGA, with 1 year of updates

Intellectual Property

Name Description License Type
Memory Interface Generator (MIG) MIG is a free software tool used to generate memory controllers and interfaces for Xilinx FPGAs. No-Charge IP

Additional Tools, IP and Resources

Name Product Category Item Description
Open Source Software Tool TeraTerm One of many possible terminal emulators used for serial connection from your PC to the evaluation kit.
