Zynq-7000 Processing System IP

Product Description

Xilinx provides the Processing System IP Wrapper for the Zynq®-7000 to accelerate your design and its configuration for your embedded products

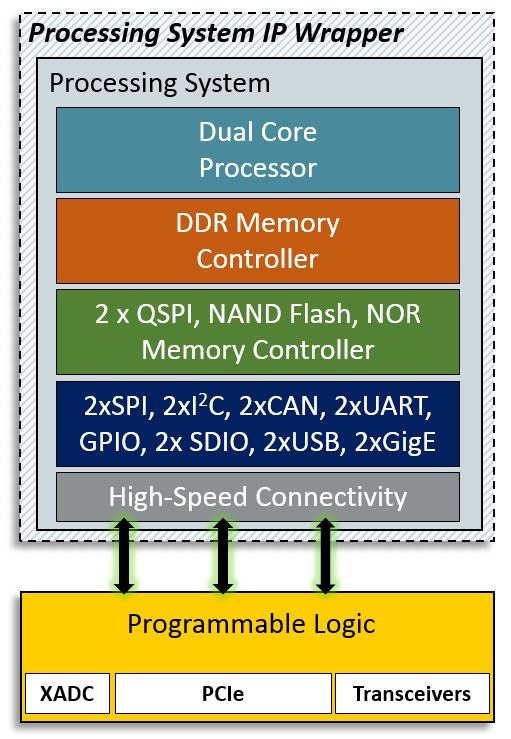

The Processing System IP is the software interface around the Zynq-7000 Processing System.  the Zynq-7000 family consists of a system-on-chip (SoC) style integrated processing system (PS) and a Programmable Logic (PL) unit, providing an extensible and flexible SoC solution on a single die.

The Processing System IP Wrapper acts as a logic connection between the PS and the PL while assisting you to integrate custom and embedded IPs with the processing system using the Vivado® IP integrator.

Key Features & Benefits

  • Enable/Disable I/O Peripherals (IOP)
  • Enable/Disable AXI I/O ports (AIO)
  • MIO Configuration
  • Extended MULTIPLE USE I/Os (EMIO)
  • DDR Configuration
  • Security and Isolation Configuration
  • Interconnect Logic for Vivado IP - PS interface
  • PL Clocks and Interrupts

Featured Documents

Tools and Device Support

Device Family Support:

Design Tools Support:

Related Products

xilinx-131x43
  • Bundled With: Vivado Design Suite
  • License: Xilinx End User License Agreement
