LogiCORE SPI-4.2 (POS-PHY L4) v7.1 - What is the power consumption of the SPI-4.2 v7.1 Core and Lite v2.0.1 Core using Virtex-4?

AR# 20430

Search For Another Answer
Topic Telecommunications
Last Updated 05/03/2010
Status Active
Description

The following power consumption numbers were obtained using Virtex-4 WebPower Tool Version 3.0.



SPI-4.2 v7.1 Core and Lite v2.0.1 Core were used for the estimation; however, they can be used for the updated versions of the cores for estimation. These numbers are conservative estimates. For this estimation, device XC4VLX25-FF668 was used.



Power estimation for Virtex-5 will be available at later date. Please contact Xilinx Technical Support for the schedule.

Solution

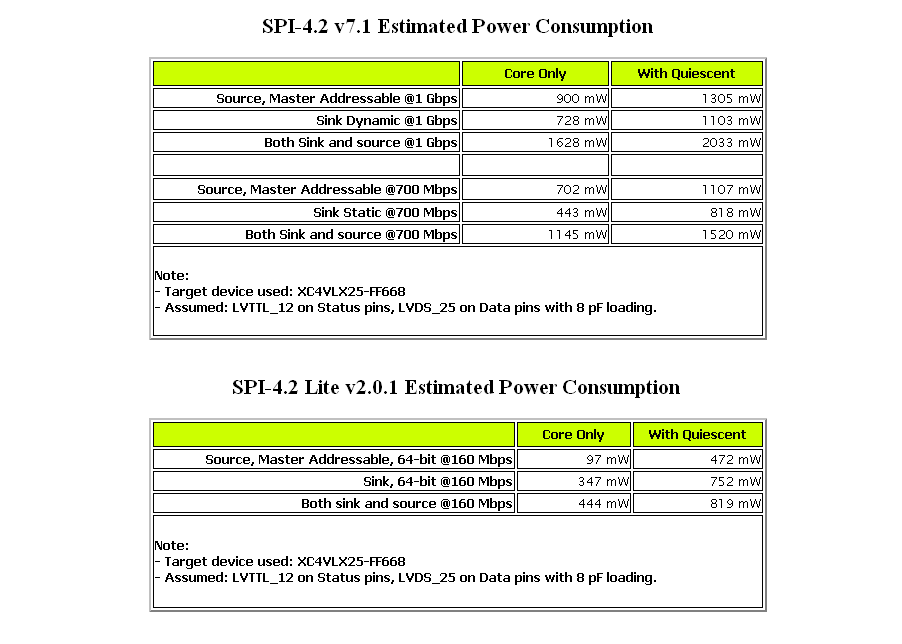

SPI-4.2 Estimated Power Consumption
SPI-4.2 Estimated Power Consumption
