AR# 25443

Spartan-3A, Spartan-3A DDR2, and Spartan-3AN Starter Kits - Wrong power supply polarity noted on silkscreen

Description

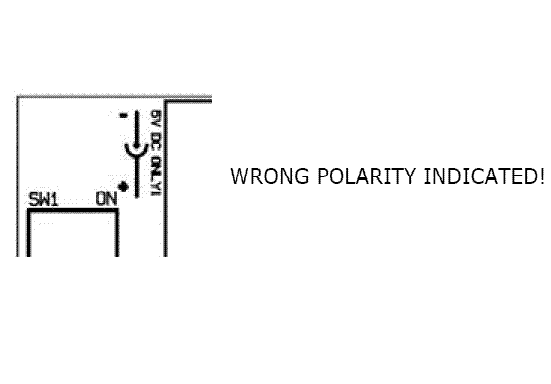

The silkscreen for the Spartan-3AN Starter Kit board might erroneously show a center negative polarity, as shown in the image below:


Solution

The correct polarity is a center positive. The power supply provided in the kit does have the correct center positive polarity. Please use the power supply provided in the kit. If you use your own power supply, please note this silkscreen error.

AR# 25443
Date Created 09/04/2007
Last Updated 12/15/2012
Status Active
Type General Article
