AR# 34658

XPS_LL_TEMAC and changing PHY TYPE parameter

Description

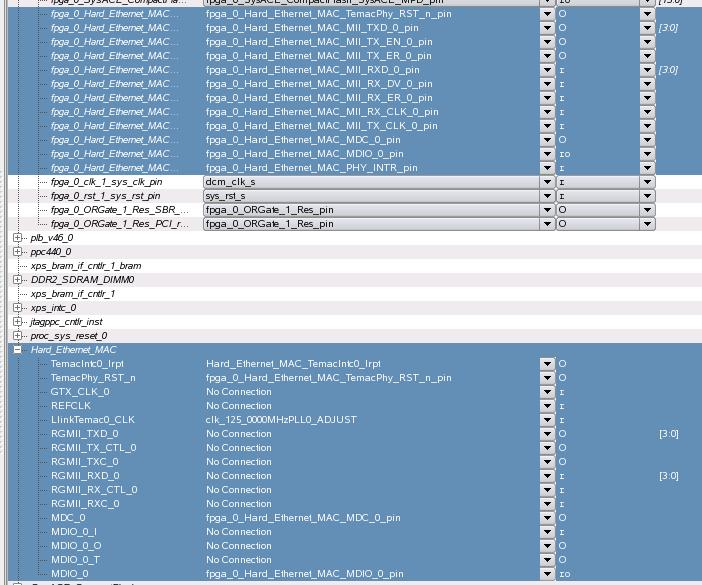

When Iuse the xps_ll_temac in one mode (MII, GMII, RGMII v1.3, RGMII v2.0, SGMII, or 1000Base-X) and I change to another mode, the top level ports in the MHS are left while the ports in the MHS from the xps_ll_temac are deleted.

Solution

When you change from one TEMAC_TYPE to another, you need to remove all the associated TEMAC ports from the MHS top level that are not part of the mode being used.

The signals for each C_TEMAC_TYPE (MII, GMII, RGMII v1.3, RGMII v2.0, SGMII, or 1000Base-X) are in the xps_ll_temac data sheet.
$XILINX\EDK\hw\XilinxProcessorIPLib\pcores\xps_ll_temac_v*\doc\

Also, the UCF file needs to be updated with the chosen mode, see (Xilinx Answer 32713).

Linked Answer Records

Master Answer Records

Answer Number Answer Title Version Found Version Resolved
34609 12.x EDK - Master Answer Record List N/A N/A
AR# 34658
Date Created 05/19/2010
Last Updated 12/15/2012
Status Active
Type General Article
Tools
  • EDK - 12.1
IP
  • XPS LL TEMAC
Boards & Kits
  • ML510
