In ISE Design Suite 12.1, a low power reset circuit is automatically inferred in any design using the DFS outputs of DCM_SP or DCM_CLKGEN. The low power reset circuit monitors the behavior of the reserved status ports for STATUS[5] and STATUS[7] to determine if a reset is required. The low power reset circuit requires the addition of seven SLICEs for the reset circuitry. The reset circuit requires four Shift Registers, five Slice Registers, and nine Slice LUTs.

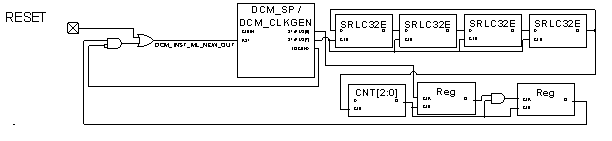

Figure 1:
For design entry, DCM_CLKGEN continues to support STATUS[2:1].ISE software and the simulation models show STATUS[7:0] for DCM_CLKGEN because STATUS[5] and STATUS[7] are required for the low power reset circuit.
The low-power reset circuitry is automatically inserted during the MAP phase. As a result, XST and TRANSLATE do not show the low power reset circuit. Post-Synthesis simulations and Post-Translate simulations similarly do not reflect the low power circuit.
Table 1: ISE Software Tools Inclusion of DCM Low-Power Reset Circuit
|
XST |
Translate |
Map |
PAR |
| Low-Power Reset Circuit |
No |
No |
Yes |
Yes |
| Simulation Library |
UNISIMS |
SIMPRIMS |
SIMPRIMS |
SIMPRIMS |
| STATUS (DCM_CLKGEN) |
[2:1] |
[7:0] |
[7:0] |
[7:0] |
| STATUS (DCM_SP) |
[7:0] |
[7:0] |
[7:0] |
[7:0] |
The low power circuit has been designed to support the full frequency ranges of DCM_SP and DCM_CLKGEN. No other design changes are required.
While not advised, the automatic insertion of the reset circuitry can be disabled adding the following design property to a UCF:
inst "< inst_name >" INSERT_LP_DFS_RESET_CIRCUIT = FALSE;
Workaround for Earlier SW Versions- For effected designs in 11.4 or 11.5, the following options are possible work-arounds:
Please use the DCM_SP using only the DLL functionality or PLL_BASE as an alternative.
For example, high speed DDR interfaces (IDDR2/ODDR2) requiring clock multiplication may still be able to use the PLL_BASE with the BUFG. Additionally many designs may be switched to SDR data rates and use the higher performance BUFPLL clock buffer with the PLL and ISERDES2 or OSERDES2.
Designs requiring phase shifting will continue to be supported for the DLL outputs of the DCM. The following DCM_SP outputs are associated with the DLL and can still be used: CLK0, CLK90, CLK180, CLK270, CLK2X, CLK2X180, CLKDV.
