ML605 - NDS336P symbol is incorrect in schematics


The ML605 schematics (Version D, Revision 03)show the incorrect symbol for the NDS336P transistor.

Article 35330
Article 35330

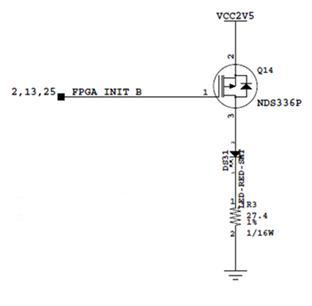

The correct symbol for the NDS336P transistor is shown below:

Article 35330
Article 35330

The ML605 schematics will be updated accordingly, and the changes will be reflected in Version D, Revision 04 of the schematics.

The board is wired correctly, the update is purely a change to the schematic symbol.
