AR# 45734

7 Series Integrated Block for PCI Express - MSI-X Table Size field in customization GUI should be entered as decimal number


Version Found: v1.1
Version Resolved and other Known Issues: See (Xilinx Answer 40469).

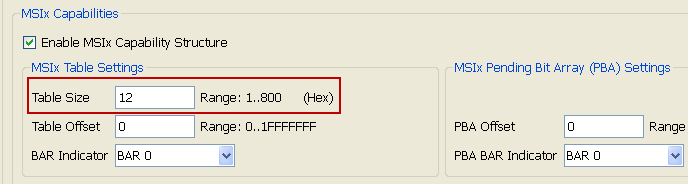

In the CORE Generator customization GUI there is a field to enter the MSIx Table Size. Should this be entered as decimal or hexadecimal?


The value is to be entered in decimal from a range of 1 to 800. Note that the actual value that appears in the register will be one less than the entered value. See the conventional PCI specification (Chapter 6) for more information on the MSI-X capability structure.

Revision History
01/09/2012 - Initial release

NOTE: "Version Found" refers to the version the problem was first discovered. The problem might also exist in earlier versions, but no specific testing has been performed to verify earlier versions.
