AR# 52084

VC707 Evaluation Board for the Virtex-7 FPGA User Guide (UG885) - SFP+ Module Connections

Description

The VC707 Evaluation Board for the Virtex-7 FPGA User Guide v1.1 (UG885) lists the FPGA U1 to SFP+ Module Connections in Table 1-15, but this pin-out does not match the Master UCF for the VC707.

Which is the correct pinout, UG885 or the Master UCF?

Solution

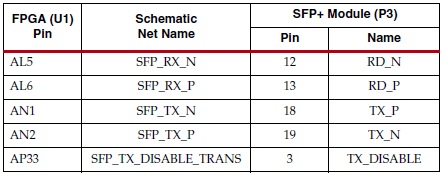

Following is Table 1-15 from the VC707 Evaluation Board for the Virtex-7 FPGA User Guide v1.1 (UG885):

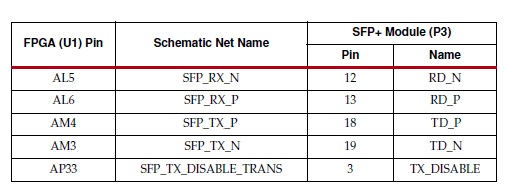

The Master UCF for the VC707 is correct; the FPGA U1 to SFP+ Module Connections are as follows:

The User Guide (UG885) v1.2 has been updated to reflect the correct information.

Linked Answer Records

Master Answer Records

Answer Number Answer Title Version Found Version Resolved
45382 Virtex-7 FPGA VC707 Evaluation Kit - Known Issues and Release Notes Master Answer Record N/A N/A
AR# 52084
Date Created 09/28/2012
Last Updated 01/10/2014
Status Active
Type General Article
Boards & Kits
  • Virtex-7 FPGA VC707 Evaluation Kit
