AR# 62031

MIG UltraScale - How do I generate a MIG IP controller with Ordering set to STRICT?

Description

How do I generate a MIG IP controller with Ordering set to STRICT?

It is not an option in the GUI, do I need to modify the generated HDL code for the controller?

Solution

This is not an option in the MIG GUI at this time, an enhancement CR has been filed to add this in the future.

Until this is added, it is necessary to make manual modification to the parameter in the generated RTL code.

This process is described below for the example design provided with the UltraScale MIG.

The following files need to be modified in the sources_1 directory tree:

  • <project_name>.srcs/sources_1/ip/mig_0/rtl/controller/mig_v5_0_ddr_mc_arb_c.sv
    • Line ",ORDERING = "NORM" needs to change to ",ORDERING = "STRICT"
  • <project_name>.srcs/sources_1/ip/mig_0/rtl/controller/mig_v5_0_ddr_mc.sv
    • Line ",ORDERING = "NORM" needs to change to ",ORDERING = "STRICT"
  • <project_name>.srcs/sources_1/ip/mig_0/rtl/ip_top/mig_v5_0_ddr3_mem_intfc.sv
    • Line ".ORDERING          ("NORM")" needs to change to ".ORDERING         ("STRICT")
  • <project_name>.srcs/sources_1/ip/mig_0/rtl/ui/mig_v5_0_ddr_ui_rd_data.sv
    • Line "parameter ORDERING    = "NORM" needs to change to "parameter ORDERING     = "STRICT"
  • <project_name>.srcs/sources_1/ip/mig_0/rtl/ui/mig_v5_0_ddr_ui.sv
    • Line "parameter ORDERING    = "NORM" needs to change to "parameter ORDERING     = "STRICT"

And the following files need to be modified in the sim_1 directory tree:

  • <project_name>.srcs/sim_1/ip/mig_0/rtl/controller/mig_v5_0_ddr_mc_arb_c.sv
    • Line ",ORDERING = "NORM" needs to change to ",ORDERING = "STRICT"
  • <project_name>.srcs/sim_1/ip/mig_0/rtl/controller/mig_v5_0_ddr_mc.sv
    • Line ",ORDERING = "NORM" needs to change to ",ORDERING = "STRICT"
  • <project_name>.srcs/sim_1/ip/mig_0/rtl/ip_top/mig_v5_0_ddr3_mem_intfc.sv
    • Line ".ORDERING          ("NORM")" needs to change to ".ORDERING         ("STRICT")
  • <project_name>.srcs/sim_1/ip/mig_0/rtl/ui/mig_v5_0_ddr_ui_rd_data.sv
    • Line "parameter ORDERING    = "NORM" needs to change to "parameter ORDERING     = "STRICT"
  • <project_name>.srcs/sim_1/ip/mig_0/rtl/ui/mig_v5_0_ddr_ui.sv
    • Line "parameter ORDERING    = "NORM" needs to change to "parameter ORDERING     = "STRICT"

After running the simulation for this modified example design using ModelSim, you will see that the ORDERING parameter setting has changed in the simulation compared to what it was in NORM mode.

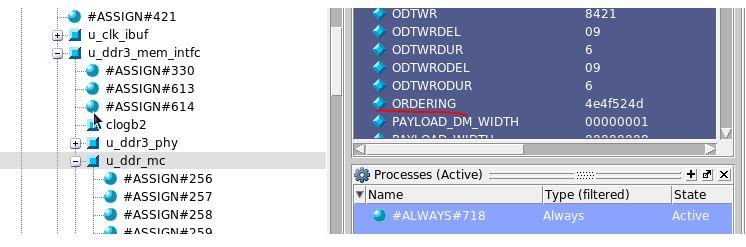

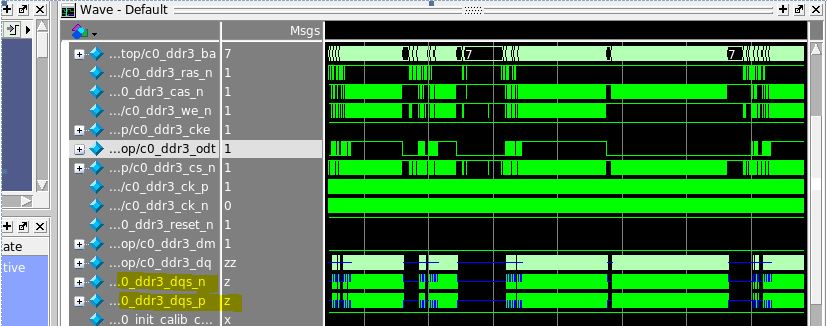

NORM mode, parameter looks as follows and also, simulation on full zoom looks as follows:

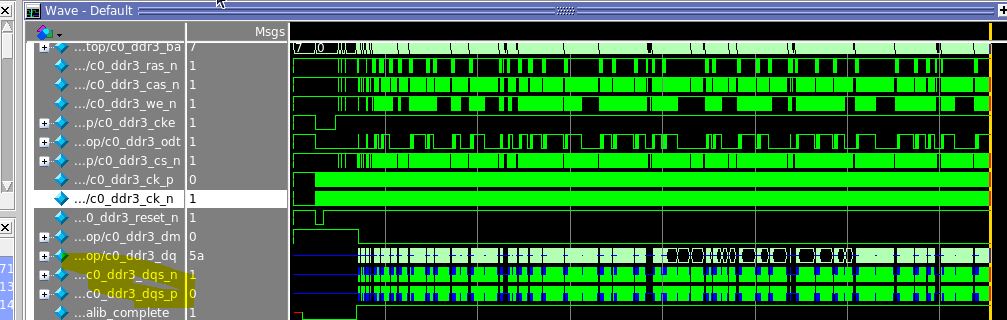

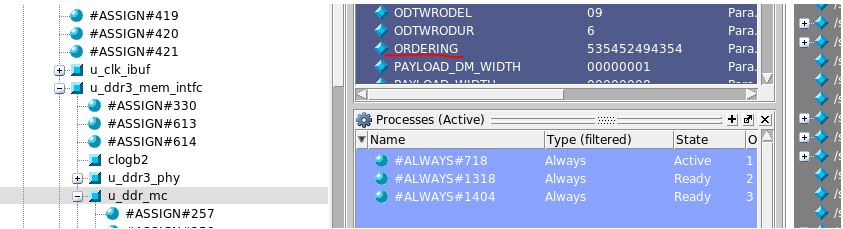

STRICT mode, parameter looks as follows and also, simulation on full zoom looks as follows:




Revision History:

09/24/2014 - Initial Release
