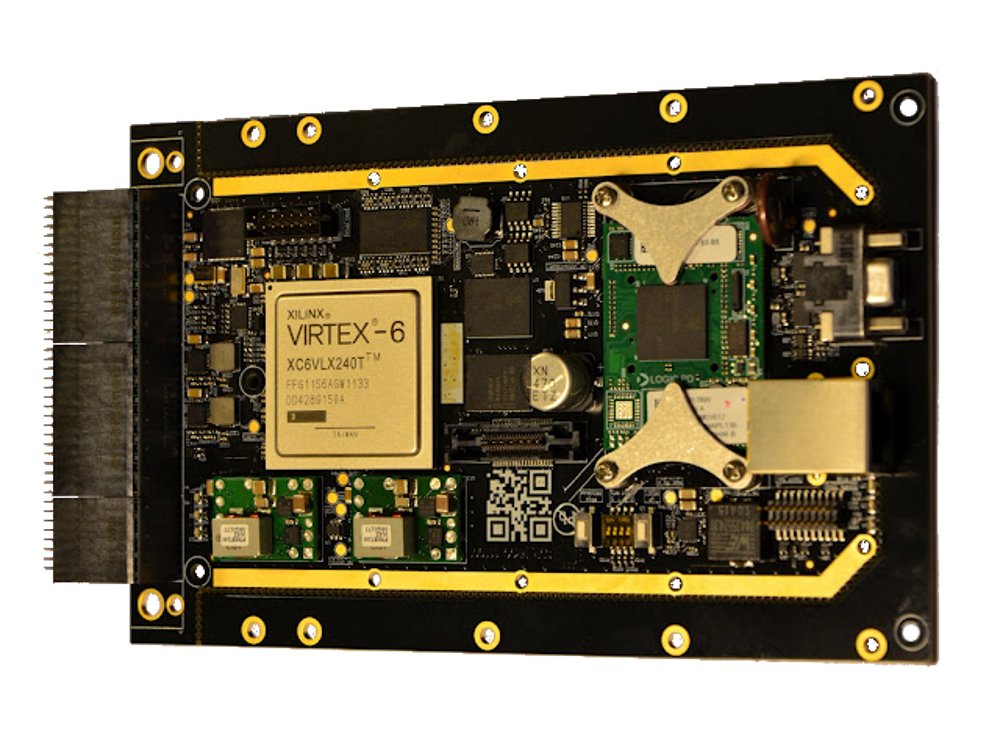

SDRproc: 3U VPX ARM9-DSP(OMAP) Virtex-6 Board

Click to Enlarge

SDRproc: 3U VPX ARM9-DSP(OMAP) Virtex-6 Board

Part Number: SDRproc
Device Support:
- Virtex-6
Vendor: SoC-e
Ecosystem Program Tier: Certified

Xilinx Certified Members demonstrate qualified expertise on the latest Xilinx devices and implementation techniques and consistently deliver high quality products and services on Xilinx programmable platforms.

Certified Members have invested in passing a comprehensive 320-point review of their technical, business, quality, and support processes and have committed engineers to passing the same rigorous training used by Xilinx Field Application Engineers worldwide. Certified Member engineers annually refresh Certification training to ensure they have updated expertise on the latest products and technologies from Xilinx.

Optimize your experience by working with Xilinx Certified Members and jumpstart your design today.

View Partner Profile

Request Information

Overview

Product Description

SDRproc is a 3U VPX VITA 48.2 REDI board designed for Defense and Aerospace Digital Signal processing applications. It integrates Texas Instruments OMAP processor (ARM9 + DSPC674X) and the powerful Xilinx Virtex-6 LX240 FPGA that provides x20 MultiGigabit communication channels for VPX payload boards.

Key Features and Benefits

3U VPX Board
Virtex-6 FPGA
Optional OMAP processor
5 FAT-PIPES (x20 MGT Channels)
Partitionable processing ARM+DSP+FPGA

What's Included

1 Gb DDR3 connected to FPGA
256 Mb parallel NOR FLASH connected to FPGA
3U VPX interface
4 Gb parallel NAND FLASH
64 MB mDDR3 connected to OMAP
8 MB SPI Flash connected to OMAP
Ethernet
JTAG and Aglient debug connectors
OMAP-L138 C6-IntegraTM DSP+ARM R Processor
Serial Ports
Virtex 6 XC6VLX240T FPGA
