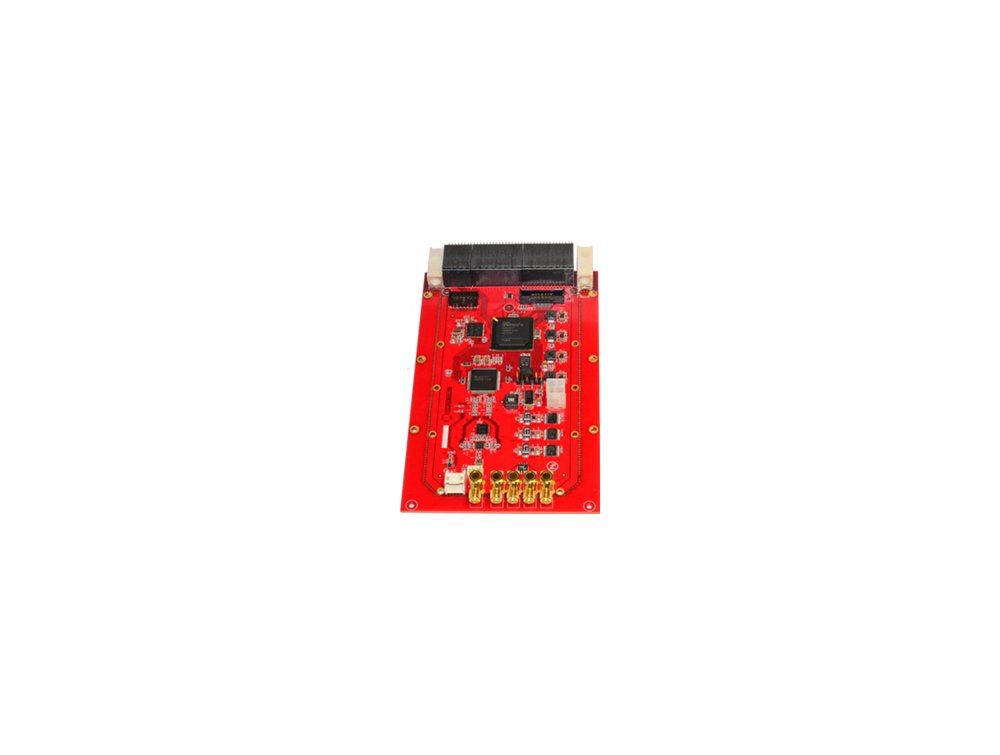

SDRtx: 3U VPX RF Transmitter Board

  • Part Number: SDRtx
  • Device Support:
  • Vendor: SoC-e
  • Alliance Program Tier: Certified
Overview

Product Description

The SDRtx is a 3U VPX Transmitter board for SDR systems. It combines the powerful Texas Instruments DAC front-end for SDR combined with the flexibility of Xilinx Spartan-6 FPGA family. This FPGA delivers high-speed interconnection with processing boards when a VPX backplane is used. Furthermore, this device provides enough computation capabilities to implement Digital Signal Processing algorithms like up-conversion or signal filtering.


Key Features and Benefits

  • Conduction and air cooling
  • Software-Defined Radio
  • RF TX front End
  • 3U VPX
  • Power Amplifier DAC control

What's Included

  • 3U VPX Card
  • Aluminum Clamshell for conduction-cooling version
  • Configuration Software
  • Documentation
  • Reference Design
