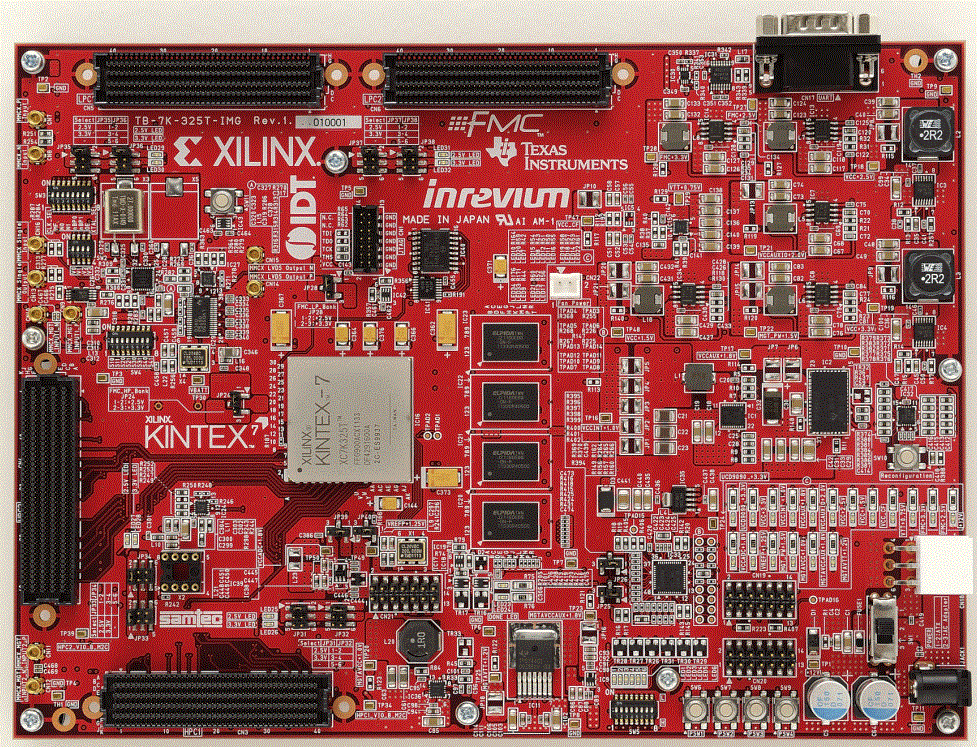

inrevium ACDC K7 Base Board

  • Part Number: TB-7K325T-IMG
  • Device Support:
  • Vendor: Tokyo Electron Device Ltd.
  • Program Tier: Certified

Product Description

The ACDC 1.0 base board is a revolutionary platform suited for evaluation, test-and-debug, and development of video designs. With 12.5Gbps GTX transceivers and 64-bit x 1.8666Mbps DDR3 memory the board meets the high-bandwidth, high-performance video buffering requirements of video applications like 4K2K TV, projectors and monitors, 4K2K video cameras, broadcast switchers and routers, up and down conversion equipment, SMPTE 2022 and Ethernet AVB video over IP equipment and others. Based on the 28nm Kintex™-7 325T, the ACDC 1.0 base board provides maximum flexibility for getting video in and out of the board via HDMI, DVI, DisplayPort, V-by-OneHS, Ethernet, LVDS, PCIe, and other interfaces*.


Key Features and Benefits

  • 135MHz OSC
  • 200MHz OSC
  • 4 x DDR3 2Gbit
  • 74.25MHz (via socket)
  • Configuration: QUAD SPI Flash (128Mbit)
  • FMC Connectors:
  • JTAG Configuration Port
  • MMCX Connectors for Input and Output
  • PLL (user programmable)
  • Transceiver: 16ch x 12.5Gbps GTX
  • XADC independent, 1MSPS, 12-bit analog-to-digital converter
  • ¦FPGA •Xilinx FPGA: XC7K325T-2FFG900E device

What's Included

  • *1 Note) Data is provided from TED Support Web site. (TED Support Web is a site only for purchaser.)
  • AC Adapter
  • EDK Base System Builder Design, XBD file for EDK base system builder
  • HDMI Frame Buffer Design
  • HDMI interface design with TB - FMCH - HDMI2 (sold separately)
  • Memory controller: Generated by Memory Interface Generator (MIG)
  • MicroBlaze softcore CPU and peripherals
  • Reference Design (Verilog HDL) *1
  • RoHS compliant Kintex-7 K325T ACDC1.0 base board
