OZ745-3 Zynq®-7000 SoC Video Development Kit

  • Part Number: OZ745-3
  • Device Support:
  • Vendor: Omnitek
  • Ecosystem Program Tier: Premier
  • Accelerator Program Level: Silver

Product Description

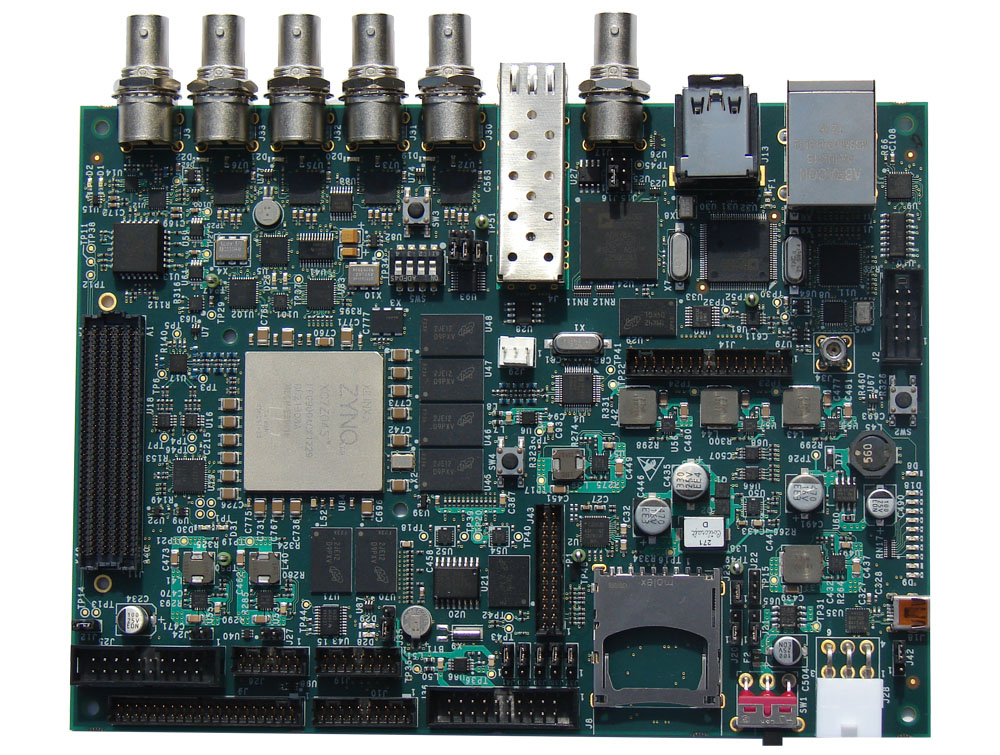

The OZ745-3 is a video development platform based around the Xilinx® Zynq-7Z045 -3 speedgrade FPGA. The kit includes all the basic components of hardware, design tools, IP, pre-verified reference designs and Board Support Package to rapidly develop video and image processing designs. Omnitek also supplies software and firmware IP cores along with design services to further accelerate time to market.

Key Features and Benefits

  • 3 x SD/HD/3G SDI I/O
  • HDMI I/O
  • Composite, VGA & S-Video input
  • 10x LVDS for LCD display
  • LCD display power
  • HPC FMC expansion connector
  • Analog & DigitalAudio I/O
  • Serial ports
  • 1G Ethernet
  • SFP+ MSA/Non-MSA cage for SDI, 10G Ethernet, fibre etc
  • 2x USB and 2x USB header
  • SD card slot for boot etc
  • FPGA & ARM JTAG debug ports
  • 1x 12G-SDI input
  • 1x 12G-SDI output

What's Included

  • OZ745 Example Design: source code
  • OZ745 PCB schematics: PDF document only
  • OZ745 Zynq SoC Video Development Platform
  • OZ745 Design Example Guide, with instructions how to build the first-stage boot loader, the Linux kernel, how to target the software for OZ745 hardware, creating bootable images, etc EDK project build instructions
  • OZ745 Hardware Guide
  • OZ745 Quick Start Guide with instructions on how to connect & power the PCB
  • Power Supply Brick with regional power cord
  • RTVE 3.1 User Guide
  • RTVE 3.1 reference design: bit stream only + exe OZ745 Example Design: source code
  • SD Card: contains boot files, BSP, RTVE example bit stream, evaluation reference design
