TE0720

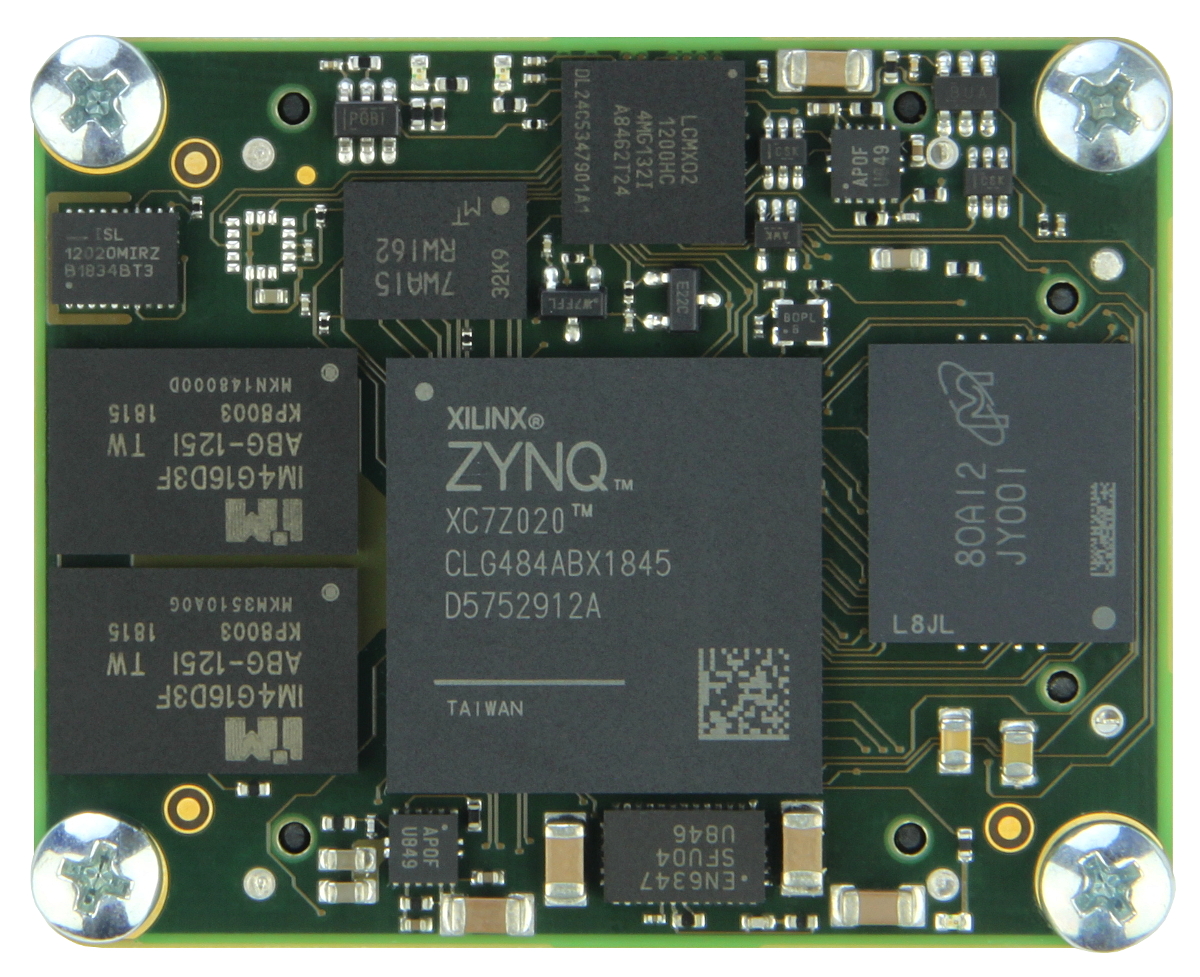

The Trenz Electronic TE0720 is an industrial-grade SoC module integrating a Xilinx Zynq-Z020 SoC, a Gigabit Ethernet transceiver (physical layer), 8 Gbit (1 GByte) DDR3 SDRAM 32-bit width, 32 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking strips. All modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among them.

All this on a tiny footprint, smaller than a credit card, at the most competitive price.

There are different base boards and a cooling solution available for this module. Latest documentation, design support files and reference designs with source files are available for download free of charge.

All modules produced by Trenz Electronic are developed and manufactured in Germany.


Key Features and Benefits

  • Xilinx Zynq-7000 (Z-7020) SoM, Dual-core ARM Cortex-A9 MPCore
  • AES bit-stream encryption
  • Standard footprint 4 x 5 cm only
  • 152 FPGA I/O's (75 LVDS pairs possible) and 14 MIO's available on board-to-board connectors
  • Plug-on module with two 100-pin and one 60-pin high-speed hermaphroditic stacking strips
  • On-board high-effciency DC-DC converters
  • microUSB 2.0 (Hi-Speed) device and host port
  • Gigabit Ethernet transceiver (PHY)
  • 32-bit wide 1 GByte DDR3 SDRAM
  • 256 Mbit (32 MByte) Quad-SPI Flash memory (for configuration and operation)

What's Included

  • Other assembly options for cost or performance optimization and high price volume available on request.
