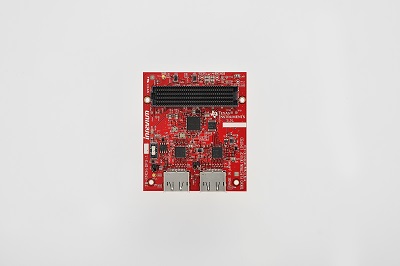

Inrevium 3G/HD/SD SDI Card (Extended version)

  • Part Number: TB-FMCH-3GSDI2A
  • Device Support:
  • Vendor: Tokyo Electron Device Ltd.
  • Program Tier: Certified

Product Description

The 3GSDI FMC Connectivity mezzanine card is designed to provide 2ch input, 2ch output and 2ch bidirectional channels of 3G/HD/SD SDI format with the connection between FMC (HPC) connector. It could expand up to 4ch input, 4ch output and 4ch bidirectional channels by using expansion connector. The TB-FMCH-3GSDI2A board consists of TI's 3G/HD/SD SDI equalizer/driver "LMH0387" x 6, video clock generator "LMH1983" and multi-format video sync separator "LMH1981". It also has two on-board crystals (148.5MHz and 148.3516MHz) which each can be reference clocks. The board uses Samtec‘s DIN coaxial connector "DIN7A-J-P-GFRA-BH1" for SDI equalizer/driver input/output and multi-format video sync separator analog video input


Key Features and Benefits

  • 3G/HD/SD SDI Card

What's Included

  • Board Spacer Set
  • DIN - BNC: SAMTEC RF179-74BJ3-78SP4-0300 x 3
  • DIN – DIN: SAMTEC RF179-78SP4-78SP4-0300 x 1
  • Transmission Cable Set
