  • Part Number: ADM-PCIE-KU3
  • Device Support:
  • Vendor: Alpha Data Parallel Systems Ltd.
  • Program Tier: Certified

Product Description

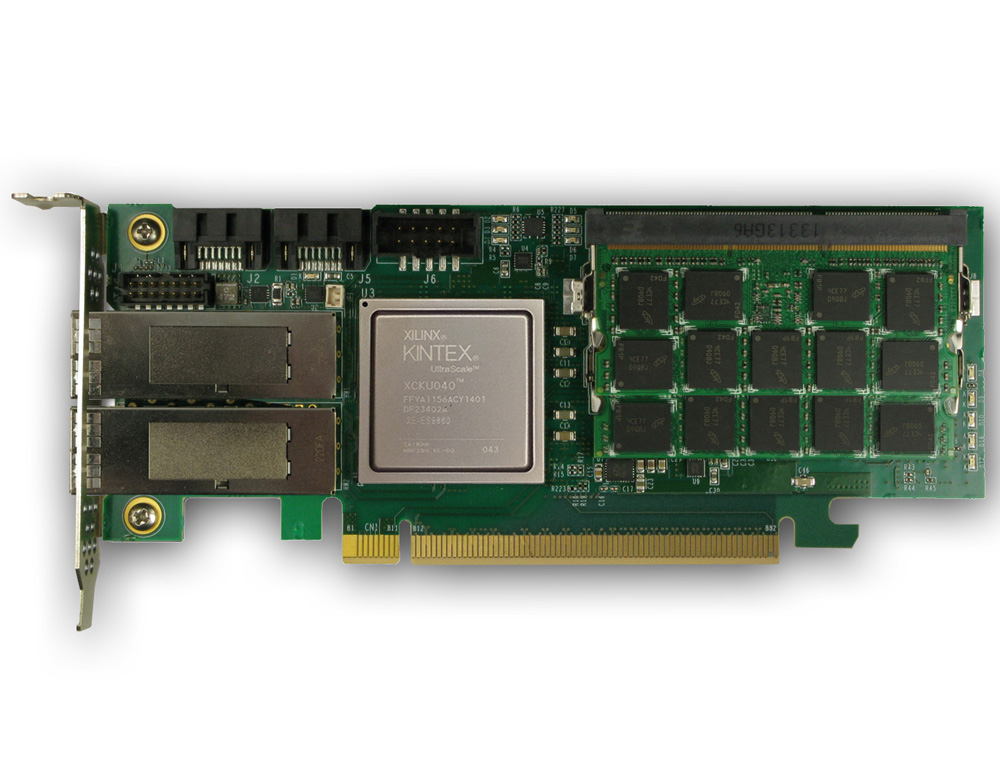

The ADM-PCIE-KU3 is a high performance reconfigurable Half-Length, low profile x16 PCIe form factor board based on the Xilinx Kintex UltraSCALE range of Platform FPGAs. The ADM-PCIE-KU3 features two independent channels of DDR3 memory capable of 1600MT/s (fitted with two 8GB SODIMMs), high speed I/O, SATA connections, Dual QSFP ports supporting 10G Ethernet, voltage/temperature/current control and monitoring, passive air-cooled heat sink. IBM Power8, CAPI and SDAccel supported Now OpenPower Ready certified

Key Features and Benefits

  • Dual QSFP High Speed Communications ports
  • Dual SATA High Speed Data Storage ports
  • PCI Express x16 Interface
  • SDK and Driver Software provided with board
  • TWO SODIMM slots
  • Vivado, SDAccel and CAPI example designs available

What's Included

  • SDK and Device Drivers
