MicroZed Evaluation Kit

Product Description

MicroZed™ is a low-cost development board based on the Xilinx Zynq®-7000 All Programmable SoC. Its unique design allows it to be used as both a stand-alone evaluation board for basic SoC experimentation, or combined with a carrier card as an embeddable system-on-module (SOM). MicroZed contains two I/O headers that provide connection to two I/O banks on the programmable logic (PL) side of the Zynq-7000 AP SoC device. In stand-alone mode, these 100 PL I/O are inactive. When plugged into a carrier card, the I/O are accessible in a manner defined by the carrier card design. Thus designers can start with MicroZed in stand-alone mode as a learning platform and then easily expand its functionality as a SOM through the addition of an off-the-shelf or custom designed carrier card. This combined stand-alone/SOM approach can quickly move a design idea from concept to production, making MicroZed the ideal platform for SoC based applications.

For a customized MicroZed orders, please email customize@avnet.com.

The MicroZed kit is supported by the www.microzed.org community website where users can download kit documentation and reference designs as well as collaborate with other engineers also working on Zynq designs.

Key Features & Benefits

  • 1 GB of DDR3 SDRAM
  • 10/100/1000 Ethernet
  • 100 User I/O (50 per connector)
  • 128 Mb of QSPI Flash
  • 2x6 Digilent Pmod® compatible interface providing 8 PS MIO connections for user I/O
  • 33.33 MHz oscillator
  • Configurable as up to 48 LVDS pairs or 100 single-ended I/O
  • Micro SD card interface
  • PS JTAG pins accessible via Pmod
  • USB 2.0
  • USB-UART
  • User LED and push switch
  • XC7Z010-1CLG400C
  • Xilinx PC4 JTAG configuration port

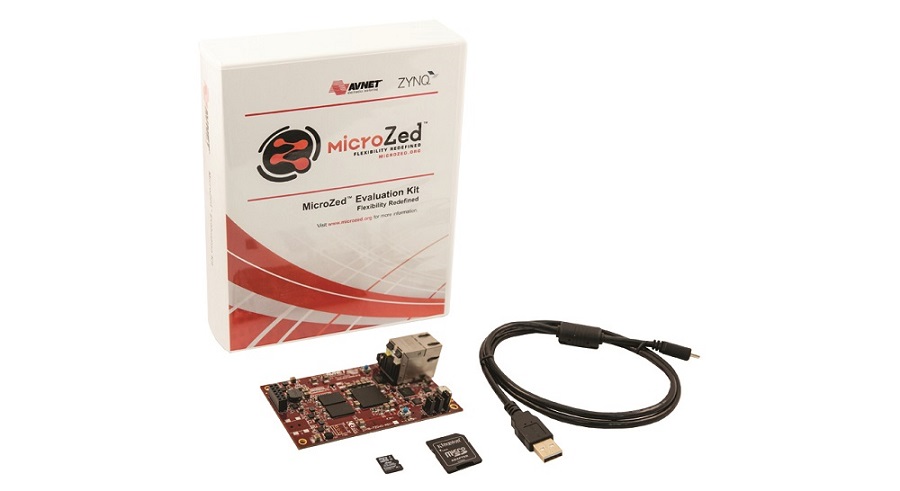

What's Included

  • 4 GB SD card
  • Getting Started Card
  • Micro USB cable
  • MicroZed board
  • Xilinx Vivado Design Edition license voucher (device locked to 7Z010)
Avnet Electronics MarketingView Partner Profile

Program Tier:

Premier
Request Info Buy Online
  • Price: $199
  • Part Number: AES-Z7MB-7Z010-G
