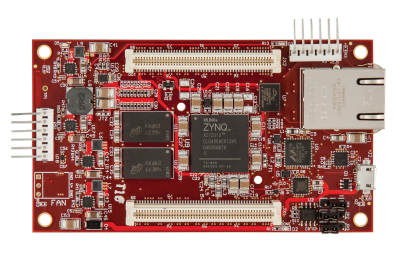

MicroZed Single Board Computer

  • Price: $213
  • Part Number: AES-Z7MB-7Z010-SBC-G
  • Device Support:
  • Vendor: Avnet
  • Premier Alliance Member
Overview

Product Description

MicroZed™ SBC (Single Board Computer) is based on the successful MicroZed SOM (System On Module), with the main difference being the flipped orientation of the I/O expansion connectors. With the I/O connectors on the topside of the board, the MicroZed SBC is designed to accept daughter cards for custom interfaces, making the SBC the main baseboard of a system.


Key Features and Benefits

  • XC7Z010-1CLG400 or XC7Z020-1CLG400
  • 1 GB of DDR3 SDRAM
  • 128 Mb of QSPI Flash
  • Micro SD card interface
  • 10/100/1000 Ethernet
  • USB 2.0
  • 100 User I/O (50 per connector)
  • Configurable as up to 48 LVDS pairs or 100 single-ended I/O
  • UART accessible via compatible Pmod
  • JTAG configuration port
  • PS JTAG pins accessible via board-to-board connectors
  • 33.33 MHz oscillator
  • User LED and push switch

What's Included

  • MicroZed SBC Board
