Overview

Product Description

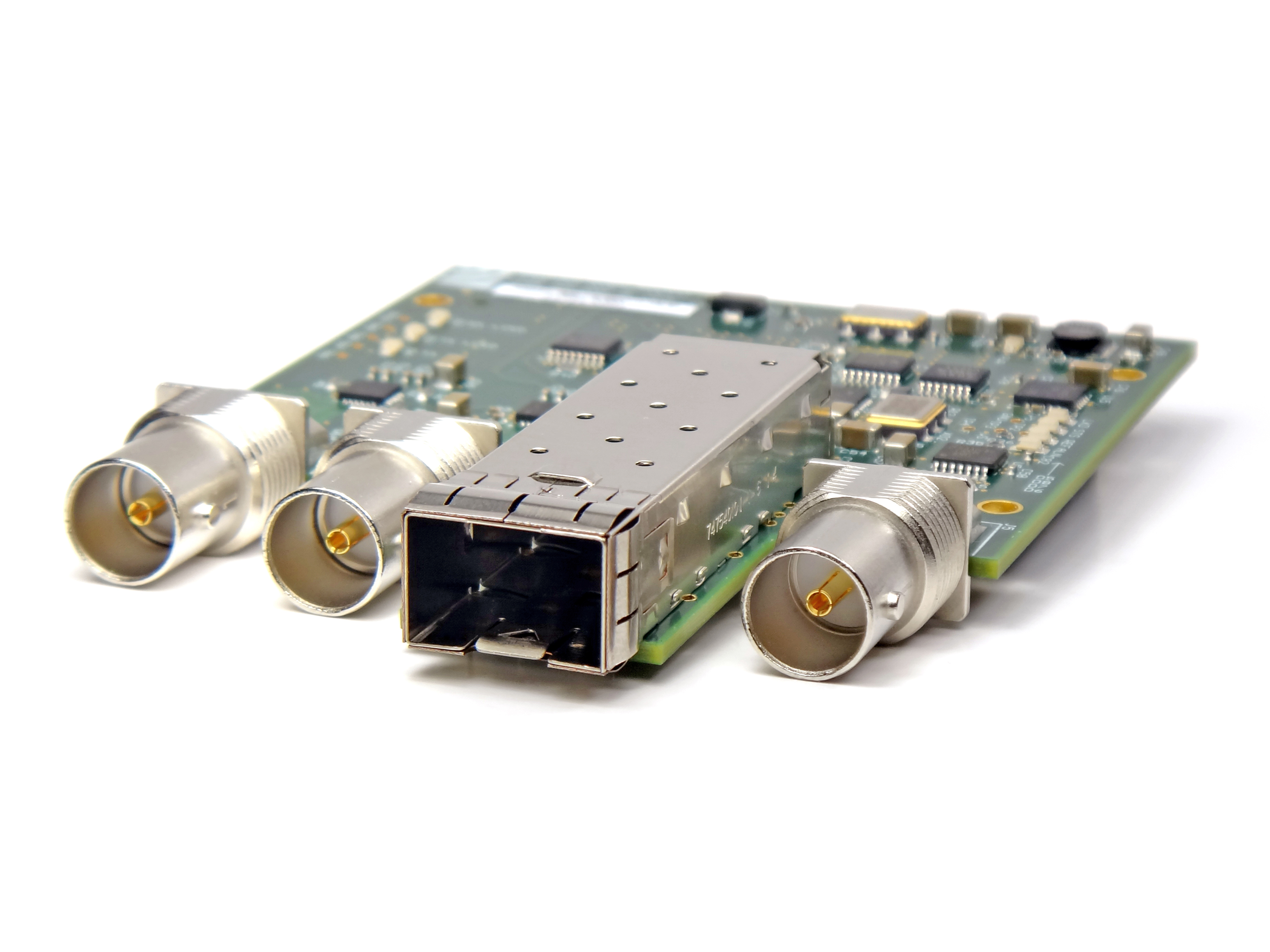

Our VIDIO 12G SDI FMC Daughter Card equips developers with the latest in broadcast video technology. VIDIO offers 12G SDI and 10G IP interfaces supporting resolutions up to 4Kp60 on select Xilinx Ultrascale, Ultrascale+, Kintex, Virtex, and Zynq development boards. Our 12G SDI FMC Card is a single FMC board boasting full size edge launch BNC's and an SFP+ for SDI or IP development. Utlilizing the latest technology from Texas Instruments®, the VIDIO SDI Interface supports 270M, 1.5G, 3G, 6G, and 12G SDI, while the Ethernet/Video SFP+ interface supports 1G, 2.5G, and 10G. Schematics, Gerbers, bill of materials, along with example projects are available to help jump-start your hardware design. The VIDIO SDI FMC card was rigorously tested with the latest BERT testers and SDI signal analyzers and offers the best jitter performance on the market. Our 12G SDI FMC board is able to drive 100 meters of 8281 coax and still meet SMPTE jitter specs. VIDIO provides an affordable and effective platform on which to develop new 12G SDI, 4K video, and Video over IP products.


Key Features and Benefits

  • Full size 12G edge launch BNC connectors
  • Uses the latest 12G Texas Instruments® technology
  • Bi/Tri Level Genlock
  • Single FMC board supports SDI, Fiber, and IP

What's Included

  • Example Project (Adapted XAPP1248/1249)
  • FMC Board
  • Schematics, Layout and Gerbers
