TE0722

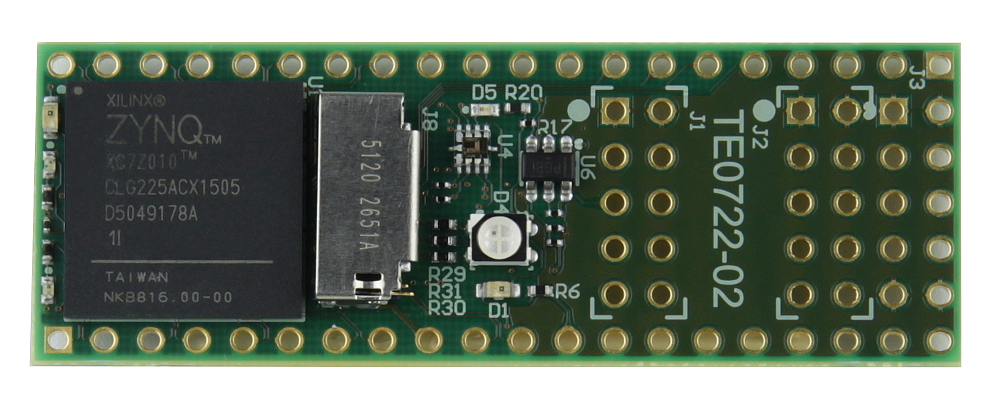

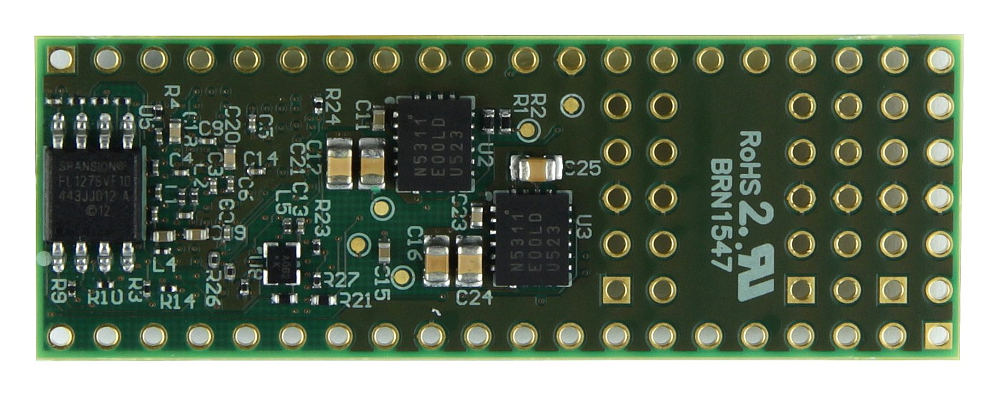

The TE0722 is based on the AMD Zynq 7000, a System on Chip, which contains a FPGA and a Dual Core ARM A9+ processor with enough logic gates to become a Propeller. The board also has 16 MByte of Flash used for configuration and everything fits on a Propeller-compatible DIP 40 pinout.

The DIPFORTy1 'Soft Propeller' is the lowest cost Zynq based module ever made and the first Zynq module that can use existing bases and project boards (Parallax Propeller chip compatibility).

All this in a compact 1.8 x 5.1 cm form factor, at the most competitive price.

All modules produced by Trenz Electronic are developed and manufactured in Germany.


Key Features and Benefits

  • User LED (ARM CPU MIO GPIO)
  • "Done" LED (inverted polarity)
  • RGB LED (PL I/O connected)
  • 3.3V single supply
  • Total user accessible PL I/O: 46 (+3 Input only)
  • DIP40 form factor, 2 x 20 holes for socket pins or pin-header
  • AMD Zynq 7: XC7Z010-CLG225
  • 16 MByte SPI Flash (primary boot)

What's Included

  • Other assembly options for cost or performance optimization plus high volume prices available on request.
