logiREF-MEDIA-ZED Multimedia Controller Ref. Design

  • Part Number: logiREF-MEDIA-ZED
  • Device Support:
  • Vendor: Xylon d.o.o.
  • Program Tier: Premier

Product Description

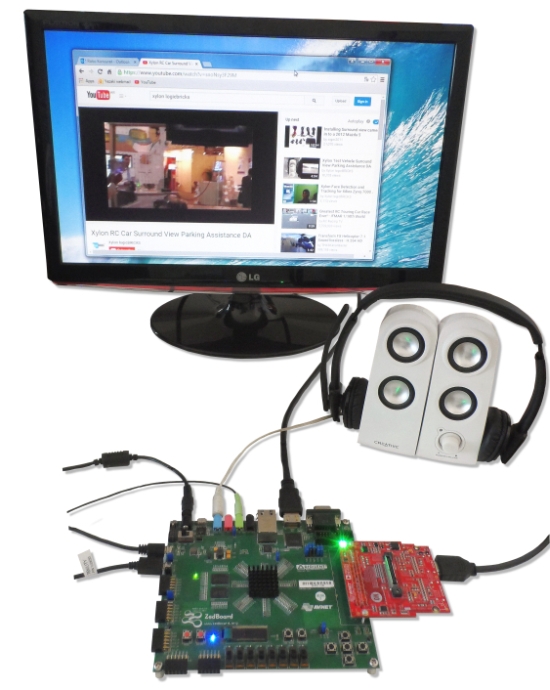

The logiREF-MEDIA-ZED reference design demonstrates video frame grabbing, audio recording and playback, and the graphics Human Machine Interface (HMI) by evaluation of Xylon's logicBRICKS IP cores and with standard Linux software drivers provided and maintained by Xylon: Advanced Linux Sound Architecture (ALSA), Video4Linux 2 (V4L2), framebuffer, XylonQPA 2D plugin for 2D accelerated Qt 5.4 application framework and the OpenGL ES 1.1 API. The design has been implemented on the ZedBoard™ development kit from Avnet Electronics Marketing, which is expanded by the Avnet FMC-IMAGEON HDMI I/O FMC Module. The logiREF-MEDIA-ZED design is user-customizable and can be downloaded free of charge from the Xylon website.


Key Features and Benefits

  • 1. Uses the Video4Linux2 to capture live video input
  • 2. Uses the ALSA software framework for audio playback and recording
  • 3. Design optimized for Xilinx Zynq-7000 AP SoC
  • 4. Designed for the ZedBoard + FMC-IMAGEON from Avnet Electronics Marketing
  • 5. Xilinx Vivado compatible

What's Included

  • Complete Linux framework for HMIs and display output control
  • Free reference design
