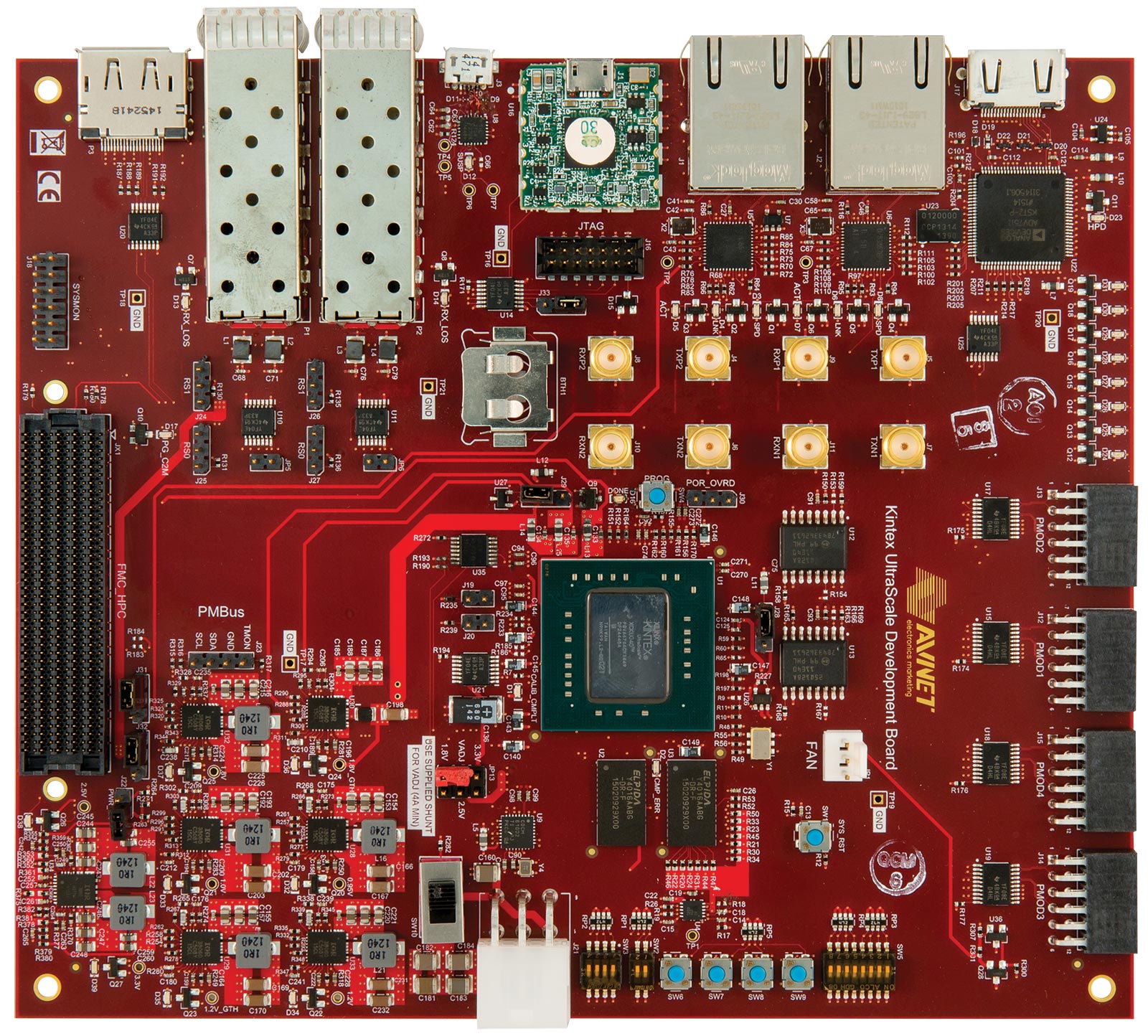

Xilinx Kintex® UltraScale™ Development Kit

  • Price: $975
  • Part Number: AES-KU040-DB-G
  • Device Support:
  • Vendor: Avnet
  • Premier Alliance Member
Overview

Product Description

The Xilinx Kintex® UltraScale™ Development Kit provides a complete development platform for designing and verifying applications based on the Xilinx Kintex UltraScale FPGA devices. The Xilinx Kintex UltraScale development board packages all the necessary functions needed for an embedded processing system.

Available with the Kintex UltraScale XCKU040-1FBVA676 device, the Kintex UltraScale kit enables designers to prototype high-performance designs with ease, while providing expandability and customization through the FMC HPC expansion slot and PMOD headers. In addition to the Xilinx Kintex UltraScale XCKU040 device, the Kintex UltraScale development board features 1GB DDR4 SDRAM, two SFP+ interfaces, dual QSPI Flash memories, HDMI interface, LVDS touch panel interface, two 10/100/1000 Ethernet PHYs, and a USB-UART port.


Key Features and Benefits

  • Digilent USB-JTAG Module (JTAG-SMT2)
  • SYSMON Header
  • JTAG Header
  • 250 MHz LVDS Oscillator (system clock)
  • Programmable LVDS Clock Source (GTH reference clock)
  • 8 User DIP Switches
  • 5 User Push Switches
  • 8 User LEDs
  • HDMI Interface
  • Four PMOD headers
  • LVDS Touch Panel Interface
  • Two GTH SMA Interfaces (up to 12.5Gbps)
  • Two SFP+ Interfaces (up to 12.5Gbps)
  • FMC HPC Slot (VADJ of 1.8V, 2.5V, or 3.3V)
  • USB-UART Interface
  • Two 10/100/1000 Ethernet Interfaces (RGMII)
  • 32MB of User Code/Data QSPI Flash (single QSPI x4)
  • 32MB of Configuration QSPI Flash (single QSPI x4)
  • 1GB DDR4 SDRAM (x32 @ 1600Mbps)
  • Xilinx XCKU040-1FBVA676 FPGA

What's Included

  • Xilinx Vivado: Design Edition (Device locked to XCKU040)
  • 12V Power Supply (US/UK/Euro AC cords)
  • Avnet Kintex UltraScale Development Board
  • Ethernet and USB A-mini-B Cables (2)
  • XCKU040-1FBVA676 Kintex UltraScale FPGA device
