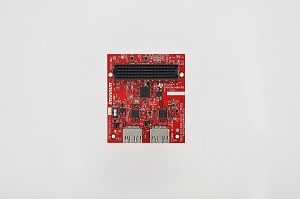

inrevium Diplay Port 1.2 FMC card

  • Price: $0
  • Part Number: TB-FMCH-DP3
  • Device Support:
  • Vendor: Tokyo Electron Device Ltd.
  • Program Tier: Certified

Product Description

The DP1.2 FMC card is designed to provide 1x Sink and 1x Source with the connection between FMC (HPC) connector. It could expand up to 2x Sink, 2x Source by using expansion connector. The DP1.2 FMC card consists of TI's Redriver IC SN65DP159RGZ which support up to 5.4Gpbs. This card should be used with Xilinx Display Port IP.


Key Features and Benefits

  • Display Port 1.2 Standatard
  • Please contact Xilinx for reference design
  • Sink/Source x 1 port each
  • Working with Xilinx's Diplay Port IP

What's Included

  • Display Port 1.2 FMC card
  • Spacer set
