ZedBoard Zynq-7000 ARM/FPGA SoC Development Board

Overview

Product Description

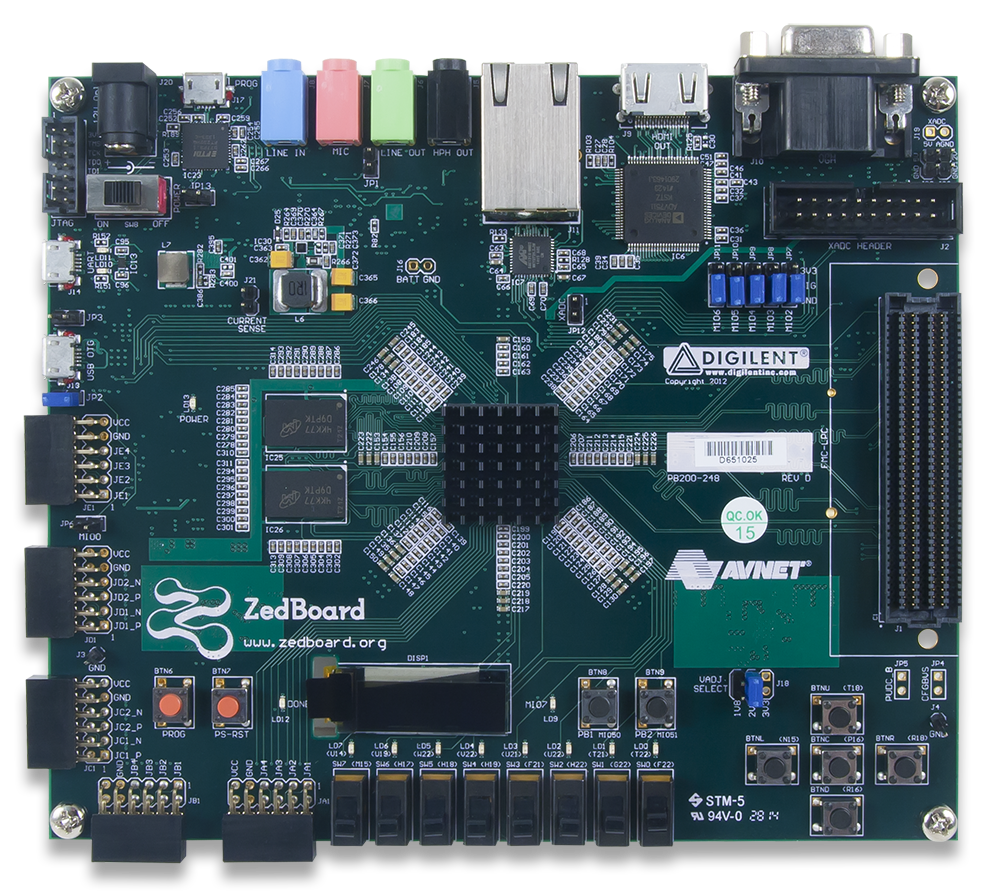

ZedBoard is a low-cost development board for the Xilinx Zynq-7000 programmable SoC (AP SoC). This board contains everything necessary to create a Linux®, Android®, Windows®, or other OS/RTOS based design. Additionally, several expansion connectors expose the processing system and programmable logic I/Os for easy user access. Take advantage of the Zynq-7000 SoCs tightly coupled ARM® processing system and 7-series programmable logic to create unique and powerful designs with the ZedBoard. Target applications include video processing, motor control, software acceleration, Linux/Android/RTOS development, embedded ARM processing, and general Zynq-7000 SoC prototyping. The ZedBoard kit is supported by the www.zedboard.org community website where users can collaborate with other engineers also working on Zynq designs.


Key Features and Benefits

  • PS & PL I/O expansion (FMC, Pmod, XADC)
  • Analog Devices ADV7511 High Performance 225 MHz HDMI Transmitter (1080p HDMI, 8-bit VGA, 128x32 OLED)
  • Analog Devices ADAU1761 SigmaDSP® Stereo, Low Power, 96 kHz, 24-Bit Audio Codec
  • USB OTG 2.0 and USB-UART
  • 10/100/1000 Ethernet
  • Onboard USB-JTAG Programming
  • 4 GB SD card
  • 256 MB Quad-SPI Flash
  • 512 MB DDR3
  • Dual-core ARM Cortex™-A9
  • Xilinx Zynq-7000 AP SoC XC7Z020-CLG484
  • General Zynq-7000 AP SoC prototyping
  • Embedded ARM processing
  • Linux/Android/RTOS development
  • Software acceleration
  • Motor control
  • Video processing

What's Included

  • ZedBoard Zynq-7000 board

Featured Documents
