Digilent Cmod A7-35T

Overview

Product Description

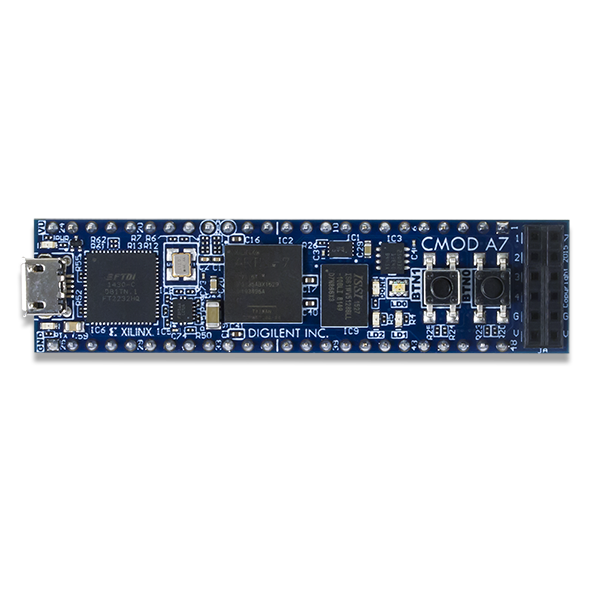

The Digilent Cmod A7 is a small, breadboard friendly 48-pin DIP form factor board built around a Xilinx Artix-7 FPGA. The board also includes a USB-JTAG programming circuit, USB-UART bridge, clock source, Pmod host connector, SRAM, Quad-SPI Flash, and basic I/O devices. These components make it a formidable, albeit compact, platform for digital logic circuits and MicroBlaze embedded soft-core processor designs using Xilinx's development software, Vivado. There are 44 Digital FPGA I/O signals and two FPGA Analog inputs that are routed to 100-mil-spaced through-hole pins so that you can integrate your programmable logic design directly into a solderless breadboard circuit. At just 0.7” by 2.75”, it can also be loaded in a standard socket and used in embedded systems.

The only difference between the Cmod A7-15T and Cmod A7-35T are the capabilities of the FPGA found on the board.


Key Features and Benefits

  • 1 MSPS On-chip ADC
  • 1 RGB LED
  • 2 LEDs
  • 2 Push Buttons
  • 20,800 LUTs
  • 225 KB Block RAM
  • 41,600 Flip-flops
  • 48-pin DIP connector with 44 Digital I/O and 2 Analog inputs (0-3.3V)
  • 4MB Quad-SPI Flash
  • 5 clock management tiles
  • 512KB SRAM with an 8-bit bus and 8ns access times
  • FPGA: XC7A35T-1CPG236C
  • One Pmod connector with 8 Digital I/O
  • Powered from USB or external 3.3-5.5V supply connected to DIP pins
  • Quad-SPI Flash/JTAG programming options
  • USB-JTAG Programming Circuitry
  • USB-UART bridge

What's Included

  • Cmod A7-35T board
