WildcatFMC - High-speed high-density optical communication for harsh environments

Overview

Product Description

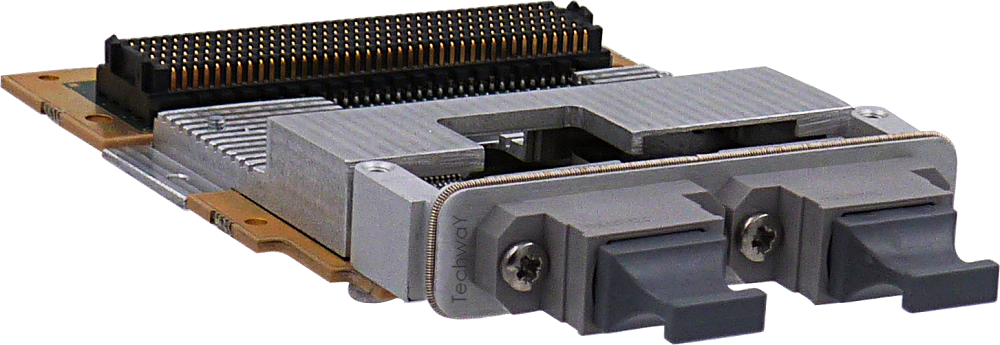

Optical communications have become the new standard in harsh, demanding environments. TECHWAY brings you a state-of-the-art solution with the WildcatFMC series. These communication boards are dedicated to markets where customers have strong environmental requirements. Based on the latest RADIALL D-Lightsys® components, the WildcatFMC solutions offer up to 24 channels @ up to 12 Gbps. FMC compliant (VITA 57.1) : - WildcatFMC-4_10 is a mezzanine card which offers 4 full duplex optical links at 10 Gbps each. FMC+ compliant (VITA 57.4) : - WildcatFMC-12_12 is a mezzanine card which offers 12 full duplex optical links at 12 Gbps each. - WildcatFMC-24_12 is a mezzanine card which offers 24 full duplex optical links at 12 Gbps each. - WildcatFMC-24-Tx_12 is a mezzanine card which offers 24 Tx (transmission) optical links at 12 Gbps each. - WildcatFMC-24-Rx_12 is a mezzanine card which offers 24 Rx (reception) optical links at 12 Gbps each. All the WildcatFMC mezzanine cards can be easily integrated into existing systems or into brand-new architectures. The WildcatFMC solutions are compatible with both air and conduction cooled environment.


Key Features and Benefits

  • 100% FMC or FMC+ compliant (VITA 57.1 or VITA 57.4)
  • Up to 24 links
  • Up to 12 Gbps
  • Protocol agnostic
  • supporting highly advanced communications as required by Serie 6, serie 7, Ultrascale and Ultrascale+ families of Xilinx FPGA

What's Included

  • Example designs included in optical FMC’s FDK are fully dedicated to Xilinx products
  • Programmable oscillator
  • RADIALL D-Lightsys(R) technology
