TySOM-2-FMC-Vision

  • Part Number: TySOM-2-FMC-Vision
  • Device Support:
  • Vendor: Aldec, Inc.
  • Program Tier: Member

Product Description

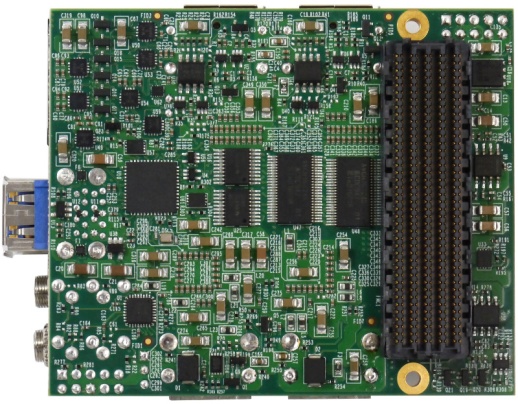

TySOM-2-FMC-Vision daughter board is designed to provide multiple interfaces used in vision application. It includes HDMI IN, HDMI OUT, DisplayPort IN, MIPI DSI, MIPI CSI, Audio Codec, 2× USB 3.0, 2× Oscillators and 2× clock for transceiver. This daughter board is compatible with the boards that support FMC HPC connector such as TySOM-2-7Z045, TySOM-2-7Z100 and TySOM-2-7Z030.


Key Features and Benefits

  • Audio IN/OUT
  • DisplayPort IN/OUT
  • FMC HPC standard connector
  • HDMI IN/OUT
  • MIPI CSI
  • MIPI DSI
  • USB 3.0

What's Included

  • 2x Clock for transceiver: 100MHz and 135MHz
  • 2x Oscillators (100MHz, 200MHz)
  • Audio IN/OUT
  • DisplayPort IN/OUT
  • FMC HPC standard connector compliant with VITA 57.1-2010
  • HDMI IN/OUT
  • MIPI CSI
  • MIPI DSI
  • USB 3.0
