TE0722-07S-1C

Overview

Product Description

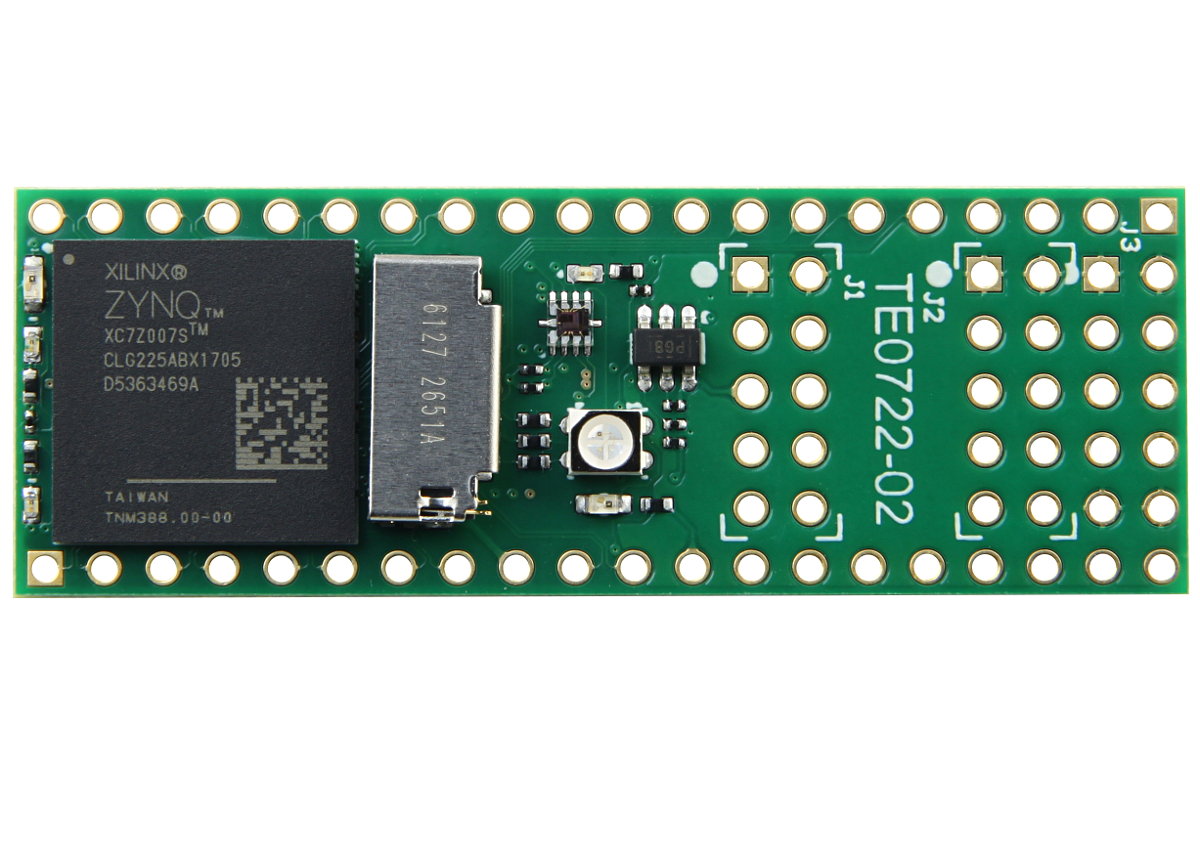

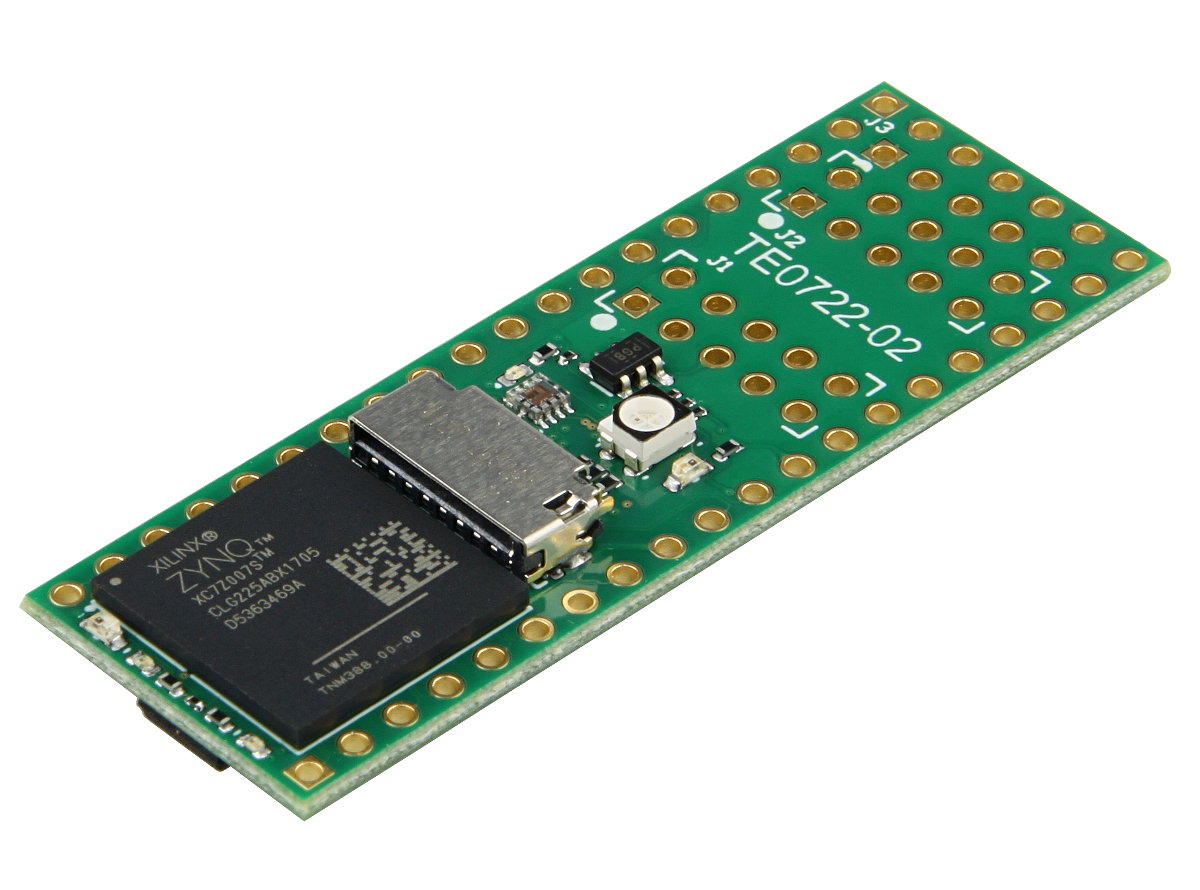

The DIPFORTy1 "Soft Propeller" is based on the Xilinx Zynq-7000S, a System on Chip which contains a FPGA and a Single-core ARM A9+ processor with enough logic gates to become a Propeller. The board also has 16 MByte of Flash used for configuration and everything fits on a Propeller-compatible DIP 40 pinout.

DIPFORTy1 "Soft-Propeller" is the lowest cost Zynq-based module ever made and the first ZYNQ module that can use existing bases and project boards (Parallax Propeller chip compatibility). All this in a compact 1.8 x 5.1 cm form factor, at the most competitive price.

This device contains a single-core ARM Cortex-A9 processor and represents the lowest cost entry point to the scalable Zynq-7000 platform.

All parts are at least commercial temperature range of 0°C to +70°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

All modules produced by Trenz Electronic are developed and manufactured in Germany.


Key Features and Benefits

  • Xilinx Zynq-7: XC7Z007S-1CLG225C
  • 16 MByte SPI Flash (primary boot)
  • 33.333 MHz Clock (MEMS Oscillator)
  • Single-core ARM A9+
  • DIP40 form factor
  • Size: 18 x 51 mm
  • Total user accessible PL I/O: 46 (+3 Input only)
  • 3.3V single supply
  • RGB LED (PL I/O connected)
  • "Done" LED (inverted polarity)
  • User LED (ARM CPU MIO GPIO)
  • MicroSD Card socket (MIO, ZYNQ secondary boot media)
  • Sil1143 Proximity and ambient light sensor

What's Included

  • Other assembly options for cost or performance optimization plus high volume prices available on request.
