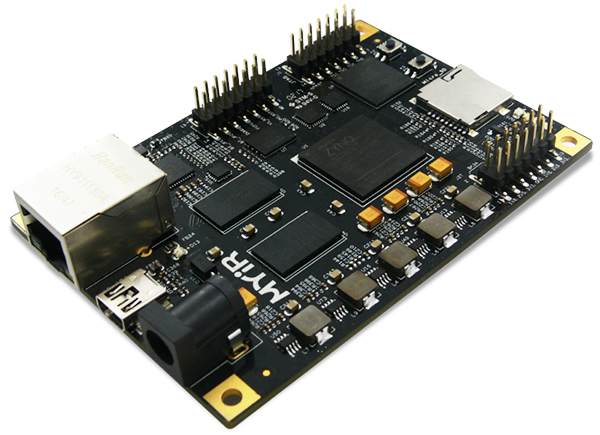

Z-turn Lite (with Zynq-7007S)

  • Price: $69
  • Part Number: MYS-7Z007S-C-S
  • Device Support:
  • Vendor: MYIR Tech Limited
  • Ecosystem Program Tier: Member

Product Description

The Z-turn Lite is an ultra-cost-effective lite version of MYIR’s Z-turn board. It is built around 667MHz Xilinx Zynq-7007S single-core or Zynq-7010 dual-core ARM Cortex-A9 MPCore processor with integrated Artix-7 Field Programmable Gate Array (FPGA) logic. It is ready to run Linux and ideal for evaluating and prototyping based on Xilinx Zynq-7000 series SoCs.


Key Features and Benefits

  • 667MHz Xilinx XC7Z007S or XC7Z010 ARM Cortex-A9 Processor with Xilinx 7-series FPGA logic
  • 512MB DDR3 SDRAM (2 x 256MB, 32-bit)
  • 4GB eMMC Flash, 16MB QSPI Flash
  • USB2.0 OTG, 10/100/1000M Ethernet, TF, Debug UART, JTAG…
  • One 120 Position Connector Socket for Expansion interface on the Rear of the Board
  • Ready-to-Run Linux Single Board Computer

What's Included

  • One 4GB TF card
  • One Z-turn Lite (with XC7Z007S-1CLG400C SoC)
  • One product disk
