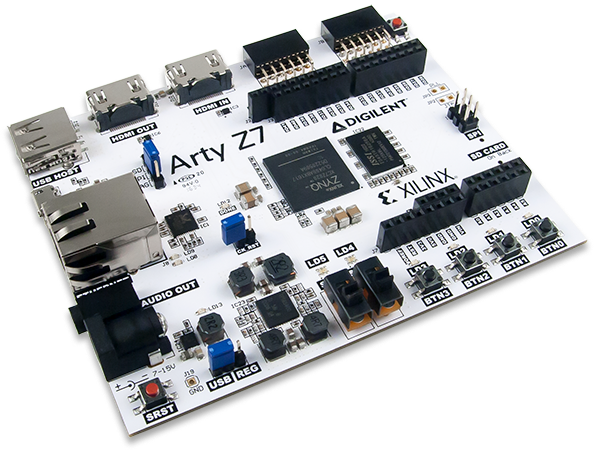

Arty Z7-20: SoC Zynq®-7000 Development Board for Makers and Hobbyists

Overview

Product Description

The Arty Z7 is a ready-to-use development platform designed around the Zynq-7000™ System-on-Chip from Xilinx. The Zynq-7000 architecture tightly integrates a dual-core, 650 MHz ARM Cortex-A9 processor with Xilinx 7-series Field Programmable Gate Array (FPGA) logic. This pairing grants the ability to surround a powerful processor with a unique set of software defined peripherals and controllers, tailored by you for whatever application is being conquered. The design process is very straightforward and provides a systematic path between defining your custom peripheral set and bringing it's functionality up to a Linux OS running on the processor. Digilent provides a number of materials and resources for the Arty Z7 that will get you up and running with this process quickly.


Key Features and Benefits

  • Available shield I/O: 49
  • Clock management tiles: 4
  • Block RAM: 630 KB
  • Flip-flops: 106,400
  • Processor: Dual ARM Cortex A9
  • 1 MSPS On-chip ADC
  • FPGA Part: XC7Z020-1CLG400C
  • Two standard Pmod ports: 16 Total FPGA I/O
  • Arduino/chipKIT Shield connector: Up to 49 Total FPGA I/O, 6 Single-ended 0-3.3V Analog inputs to XADC, 4 Differential 0-1.0V Analog inputs to XADC
  • GPIO: 4 push-buttons, 2 slide switches, 4 LEDs, 2 RGB LEDs
  • Audio and Video: HDMI sink port (input), HDMI source port (output), PWM driven mono audio output with 3.5mm jack
  • USB and Ethernet: Gigabit Ethernet PHY, USB-JTAG Programming circuitry, USB-UART bridge, USB OTG PHY (supports host only)
  • Powered from USB or any 7V-15V external power source
  • Memory: 512MB DDR3 with 16-bit bus @ 1050Mbps, 16MB Quad-SPI Flash with factory programmed 48-bit globally unique EUI-48/64™ compatible identifier, microSD slot
  • Programmable logic equivalent to Artix-7 FPGA
  • Programmable from JTAG, Quad-SPI flash, and microSD card
  • Low-bandwidth peripheral controller: SPI, UART, CAN, I2C
  • High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
  • DDR3 memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports
  • 650MHz dual-core Cortex-A9 processor

What's Included

  • Arty Z7-20
