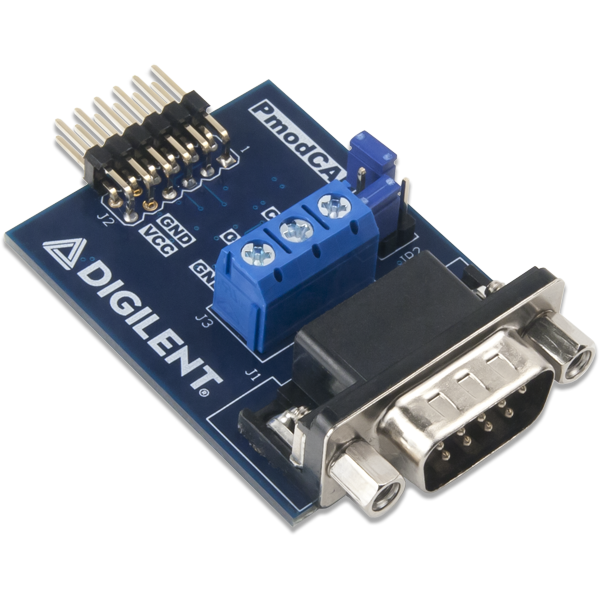

Pmod CAN: CAN 2.0B Controller with Integrated Transceiver


Product Description

The Pmod CAN is a CAN 2.0B controller with an integrated transceiver. The embedded Microchip MCP25625 chip connects directly to the physical CAN bus and meets automotive requirements for high-speed (1 Mb/s), low quiescent current, electromagnetic compatibility, and electrostatic discharge.

Key Features and Benefits

  • Follows the Digilent Pmod Interface Specification 1.1.0 type 2A
  • 12-pin Pmod connector with SPI interface
  • Small PCB size for flexible designs 1.4" × 1.8" (3.6 cm × 4.6 cm)
  • Standard DB9 connector for secure connection
  • Up to 10 MHz SPI clock speed
  • Up to 1 Mb/s operation
  • Suitable for automotive applications
  • CAN 2.0B controller with integrated transceiver

What's Included

  • Digilent Pmod CAN
