AMD Versal Prime Series
The Versal™ Prime series provides a diverse set of compute engines, next-generation I/O, and integrated DDR controllers, enabling low-latency acceleration across a wide range of workloads
When you need the fastest DDR memory interface
Introducing the new Versal Prime VM2152 device, featuring the industry’s fastest DDR memory interface1, supporting LPDDR5 (up to 6400 Mb/s) / DDR5 (up to 5600 Mb/s), 112 Gb/s transceivers, and increased DSP capability2 (more than previous Versal Prime devices) to support the increased data throughput needed in next-generation communications, test & measurements, storage, and other broad market applications.
Optimized for Connectivity, Inline Acceleration, and Diverse Workloads
*VM2152 enhancements highlighted in blue
Processor Subsystem
Three scalar processor types are available in Versal™ adaptive SoCs to support diverse application needs. The application processing unit is ideal for complex applications supported by an OS, and the real-time processing unit is ideal for applications which need low latency, determinism, and real-time control. A separate platform management controller manages system boot, security, and debug.
Programmable Logic
Programmable logic enables the development of custom computational blocks for ever-changing algorithms. The rearchitected logic in Versal adaptive SoCs provides 4X density per CLB, reducing the need for costly global routing. Loaded with a wide variety of memory elements and tightly coupled with programmable I/O, the programmable logic allows users to create powerful accelerators for any application.
DSP Engines
Enhanced DSP Engines provide support for new operations and data types, including single and half-precision floating-point and complex 18x18 operations. With backward compatibility for UltraScale+™ device designs, users can continue to leverage existing libraries and IP or update their designs to capture the improved compute performance enabled by this new architecture.
Next-Generation I/O
The Versal™ Prime series combines PCIe® Gen4/Gen5 compliance, high-performance GPIO, 400 G High-Speed Crypto (HSC) Engine*, and multirate Ethernet MACs supporting various Ethernet configurations to maximize connectivity and flexibility. Additionally, Versal Prime series devices feature rearchitected low-latency 32.75 Gb/s transceivers, and certain devices support 58 Gb/s and 112 Gb/s* PAM4 transceivers.
* Only the VM2152 device supports 400 G HSC Engine and 112 Gb/s PAM4 transceivers
Integrated DDR Memory Controllers
AMD Versal™ Prime devices support integrated DDR4/5 and LPDDR4/5 controllers* optimized for both linear and random traffic.
Save development time and logic resources by using hardened memory controller IP in combination with the programmable network on chip, both optimized for performance and area.
* Only the VM2152 device includes DDR5 and LPDDR5 memory controllers
Programmable Network on Chip
The programmable network on chip (NoC) provides an optimized multi-terabit interconnect between the different compute engines and integrated IP blocks present in the Versal adaptive SoC architecture, simplifying timing closure and saving logic resources. The NoC compiler provides a streamlined programming experience while allowing users to manage latency and QoS, ensuring that critical data paths are prioritized.
- Based on AMD internal analysis in October 2023, comparing LPDDR/DDR memory interface data rates of Versal Prime VM2152 adaptive SoC device versus Intel Agilex 7 M/I/F-Series, Intel Agilex 5 D/E-Series, and Achronix Speedster7t FPGAs. Data rate speeds vary. VER-18
- Based on AMD internal analysis in October 2023, comparing DSP-to-logic ratio (DSP Engines/system logic cells) of a Versal Prime VM2152 adaptive SoC to that of previous Versal Prime devices. VER-20
Versal Prime series solves a broad range of industry-specific problems with performance and flexibility

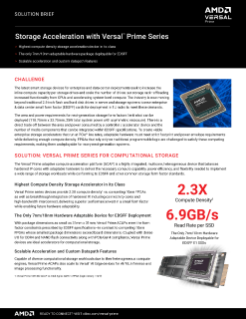

Storage Acceleration
With the dawn of AI and the explosion of data generated by modern applications, traditional compute has become an increasingly precious resource in the data center. One solution to preserve compute is to add accelerators to storage controllers and endpoints to offload compression and other common tasks from the primary processor. The Versal™ Prime series combines PCIe® Gen4/Gen5 support, powerful Arm® scalar processing engines, integrated memory controllers, and next-generation programmable logic to reduce system-level bottlenecks and increase efficiency.
Data Center Network Acceleration
FPGAs and SoCs have long played a key role in accelerating data center applications by offloading common networking functions such as encryption/decryption and virtual switching from the central processor in a system, preserving compute cycles. Versal adaptive SoCs further accelerate data center systems by combining PCIe Gen4/Gen5 support, next-generation SerDes, and a multirate Ethernet MAC with powerful heterogeneous compute engines to both offload networking operations and supplement the compute available in a server with additional inline processing.
5G xHaul
As 5G is emerging, the demand for high-bandwidth connectivity requires access networks to adapt to support new protocols, such as eCPRI, while still maintaining compatibility with existing standards. The combination of adaptable engines with industry-leading SerDes and Ethernet technology in the Versal Prime series gives operators the processing power needed to handle 5G throughput requirements while maintaining legacy standard support and reducing total cost of ownership.
Passive Optical Networks
As competition from wireless services increases, cable broadband providers must scale their networks and deliver higher bandwidth service to remain competitive. The Versal Prime series offers twice the programmable logic as existing MPSoC devices, powerful Arm scalar processing engines, greater SerDes density, integrated Ethernet IP blocks, and thermally optimized packaging to enable low power, efficient designs without compromising performance.
Communications Test Equipment
The massive explosion in bandwidth that accompanies the latest communications standards makes it challenging for test equipment vendors to keep pace with market demands. With support for 58G transceivers and multirate Ethernet MACs, the Versal Prime series offers high-performance data handling and analysis for wired communication testers. The programmable NoC and integrated memory controllers enable fast and efficient data movement for complex test algorithms.
When you need the fastest DDR memory interface
Introducing the new Versal Prime VM2152 device, featuring the industry’s fastest DDR memory interface1, supporting LPDDR5 (up to 6400 Mb/s) / DDR5 (up to 5600 Mb/s), 112 Gb/s transceivers, and increased DSP capability2 (more than previous Versal Prime devices) to support the increased data throughput needed in next-generation communications, test & measurements, storage, and other broad market applications.
See product features below
Versal™ Prime Series Features Overview
Processor Subsystem Features
| VM1102 | VM1302 | VM1402 | VM1502 | VM1802 | VM2152 | VM2202 | VM2302 | VM2502 | VM2902 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Application Processing Unit | Dual-core Arm® Cortex®-A72, 48KB/32KB L1 Cache w/ parity & ECC; 1MB L2 Cache w/ ECC | |||||||||
| Real-time Processing Unit | Dual-core Arm Cortex-R5F, 32KB/32KB L1 Cache, and 256KB TCM w/ECC | |||||||||
| Memory | 256KB On-Chip Memory w/ECC | |||||||||
| Connectivity | Ethernet (x2); USB 2.0 (x1); UART (x2); SPI (x2); I2C (x2); CAN-FD (x2) | |||||||||
DSP Engines Features
| VM1102 | VM1302 | VM1402 | VM1502 | VM1802 | VM2152 | VM2202 | VM2302 | VM2502 | VM2902 | |
|---|---|---|---|---|---|---|---|---|---|---|
| DSP Engines | 464 | 848 | 1,696 | 1,312 | 1,968 | 1,704 | 1,312 | 1,904 |
3,984 | 2,672 |
Programmable Logic Features
| VM1102 | VM1302 | VM1402 | VM1502 | VM1802 | VM2152 | VM2202 | VM2302 | VM2502 | VM2902 | |
|---|---|---|---|---|---|---|---|---|---|---|
| System Logic Cells (K) | 329 | 703 | 1,238 | 981 |
1,968 | 757 | 1,139 | 1,575 | 1,969 | 2,233 |
| LUTs | 150,272 | 321,536 | 565,760 | 448,512 |
899,840 | 346,112 | 520,704 | 719,872 | 900,224 | 1,020,928 |
Foundational Platform Features
| VM1102 | VM1302 | VM1402 | VM1502 | VM1802 | VM2152 | VM2202 | VM2302 | VM2502 | VM2902 | |
|---|---|---|---|---|---|---|---|---|---|---|
| NoC Master / NoC Slave Ports | 5 | 9 | 18 | 21 |
28 | 12 | 21 | 30 | 28 |
42 |
| DDR4 Memory Controllers | 1 | 2 | 4 | 3 |
4 | - | 3 | 3 |
4 |
3 |
| DDR5 Memory Controllers | - | - | - | - | - | 4 | - | - | - | - |
| CCIX & PCIe® w/ DMA (CPM) | - | 1 x Gen4x16, CCIX | 1 x Gen4x16, CCIX | 1 x Gen4x16, CCIX | 1 x Gen4x16, CCIX | - | 2 x Gen5x8, CCIX | - |
2 x Gen5x8, CCIX | - |
| PCIe | 1 x Gen4x8 | 2 x Gen4x8 | 2 x Gen4x8 | 4 x Gen4x8 | 4 x Gen4x8 | 2 x Gen5x4 | 4 x Gen5x4 | 2 x Gen5x4 | - | 2 x Gen5x4 |
| 100G Multirate Ethernet MAC | 1 | 2 | 2 | 4 | 4 | 2 | 2 | 6 | - | 6 |
| 600G Ethernet MAC | - | - | - | - | - | 1 | - | - | - | - |
| 400G High Speed Crypto | - | - | - | - | - | 1 | - | - | - | - |
| GTY Transceivers | 0 | 24 | 24 | 44 | 44 | 0 | 0 | 0 | 0 | 0 |
| GTYP Transceivers | 8 |
0 | 0 | 0 | 0 | 8 | 321 | 8 |
161 |
8 |
| GTM Transceivers (58G (112G))2 | 0 |
0 |
0 |
0 |
0 |
8 (4)2 | 0 | 40 (0) | 0 | 40 (0) |
- 16 GTYP transceivers are dedicated to the CPM for PCI Express use.
- 112G supported by combining two GTM transceivers together.
