Enabling Next Generation Aerospace and Defense Systems

Defense-Grade Virtex UltraScale+ FPGA Product Advantages

XQ UltraScale+ Virtex FPGAs, enable designers with a broad selection of devices to advance state-of-the-art integrated Aerospace & Defense solutions, with flexible and dynamically reconfigurable high-performance programmable logic and DSP, 28Gb/s transceivers, and ruggedized-packages with support for -55C to +125C operation.

Defense-grade Virtex FPGA Device Features: Benefits of Defense-grade UltraScale+ Virtex FPGA:
  • Ruggedized package, fully <97% Sn on all solder points
  • Full junction temperature support  –55°C to +125°C
  • Mil Std 883 Group D environmental characterization
  • Mask set control
  • Anti-counterfeit marking
  • 862K–2835K System Logic Cells
  • 2280–9216 DSP Slices
  • ECC on all memories
  • Up to 4X PCIe Gen4x8/3x16
  • Up to 96X GTY 28.2Gb/s
  • Robust packaging meeting harsh environmental needs
  • Ease burden to meet DOD anti-counterfeiting requirements
  • Increased bandwidth for high-speed connectivity
  • Reduced size, weight, and power vs previous generations
  • Increased computed density and efficiency vs previous generations

Programmable Logic (PL)

  VU3P VU7P VU11P
System Logic Cells (K) 862 1724 2835
Memory (Mb) 115 230 341
DSP Slices 2280 4560 9216
GTY 28.2 Gb/s Transceivers 40 76
96
Maximum I/O Pins 520 832 416
Available M-temp -55C to +125C Yes No No
Download PDF

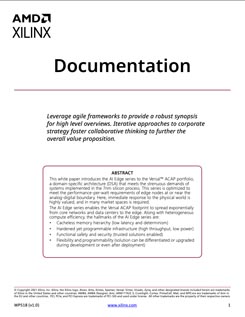

Documentation
