Sony IMX547 Camera Kit Color

The Sony IMX547 Camera Kit is available in color or monochrome for the Kria KR260 Robotics Starter Kit, compatible with the 10GigE Vision Camera App. Based on the Sony Pregius S IMX547 5MP sensor, the kit interfaces to the KR260, leveraging FRAMOS SLVS-EC Rx IP and enabling users to develop their own high-performance, high-speed, and high-resolution machine vision applications.

Overview

A must-have for the Kria KR260 Robotics Starter Kit

Features

  • Fully integrated camera kit that plugs directly into KR260 Robotics Starter Kit
  • Features Sony IMX547 1/1.8" 5 Megapixel global shutter CMOS image sensor
  • Available in color or monochrome sensor versions, 2472x2128 resolution, up to 120 fps using onboard SLVC-EC interface
  • Includes lens and lens mount
imx547-not-connected-600px

What's Inside

camera-module-with-lens

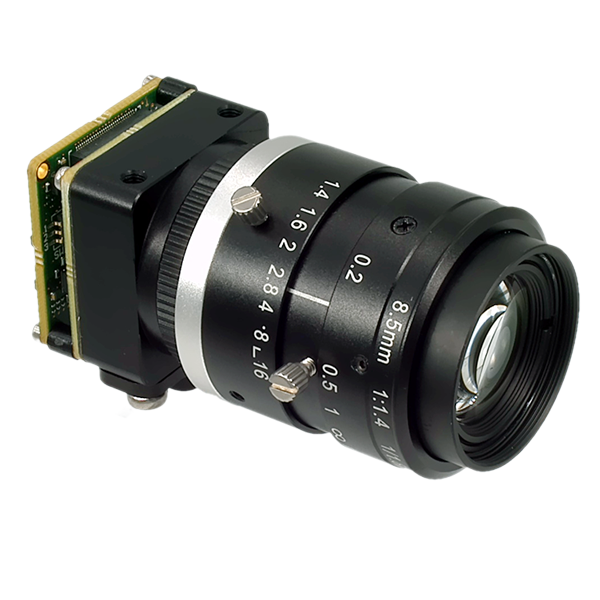

Camera Module with Lens

FRAMOS Camera kit equipped with 5.1 Mpx Sony CMOS Global Shutter sensor module bundled with Lens and Framos sensor adapter.

For use with SLVS-EC reference implementation on the Xilinx Kria™ KR260 AI Starter Kit



camera-module-cable

Camera Module Cable

PixelMate flex Cable for Hirose 60 Pin connector, 150mm

Ready to get started?

Get a Kria KR260 Robotics Starter Kit for only $349

The KR260 is a fully featured evaluation kit capable of leveraging pre-built accelerated applications to quickly develop unique solutions for production deployment on the K26 SOM.

Getting Started

Step-by-Step Guide to Get Up and Running

Documentation:

  • Data sheet - Detailed specifications on the module
Adaptive Computing in Robotics

Demand for robotics is accelerating rapidly. Building a robot that is safe and secure and can operate alongside humans is difficult enough. But getting these technologies working together can be even more challenging. Complicating matters is the addition of machine learning and artificial intelligence which is making it more difficult to keep up with computational demands. Roboticists are turning toward adaptive computing platforms which offer lower latency and deterministic, multi-axis control with built-in safety and security on an integrated, adaptable platform that is expandable for the future. Read the eBook to learn more.

Adaptive Computing in Robotics
