Kria KV260 Vision AI Starter Kit

The development platform for Kria K26 SOMs, the KV260 is built for advanced vision application development without requiring complex hardware design knowledge. Power supply sold separately.

Out-of-the-Box Ready for Application Development

vision-ready

VISION READY

  • Multi-camera Support: Up to 8 interfaces
  • 3 MIPI sensor interfaces, USB cameras
  • Built-in ISP component (OnSemi)
  • HDMI, DisplayPort outputs
connectivity

FLEXIBLE CONNECTIVITY

  • 1Gb Ethernet
  • USB 3.0 / 2.0
expandable

EXPANDABLE

  • Extend to any sensor or interface
  • Access Pmod ecosystem
accessible

ACCESSIBLE

  • Low cost, enabling design exploration
  • Available from Xilinx and distributors

Key Features

Specifications
xilinx-starterkit-kria-callout-product
Parameter KV260
Device Zynq® UltraScale+™ MPSoC
Form factor SOM + Carrier Card + Thermal Solution
Starter kit dimensions 119mm x 140mm x 36mm
Thermal cooling solution Active (Fan + Heatsink)
System logic cells 256K
Block RAM blocks 144
UltraRAM blocks 64
DSP slices 1.2K
Ethernet interface One 10/100/1000 Mb/s
DDR memory 4GB (4 x 512Mb x 16 bit) [non-ECC]
Primary boot memory 512Mb QSPI
Secondary boot memory SDHC card
Device Security Zynq UltraScale+ MPSoC hardware root of trust (RoT) in support of secure boot. Infineon TPM2.0 in support of measured boot.
Image sensor processor OnSemi AP1302 ISP
IAS MIPI sensor interfaces x2
Raspberry Pi camera interface x1
Pmod 12-pin interface x1
USB3.0/2.0 interface x4
DisplayPort 1.2a x1
HDMI 1.4 x1
What's Inside
kv260-getting-started-2000x1059

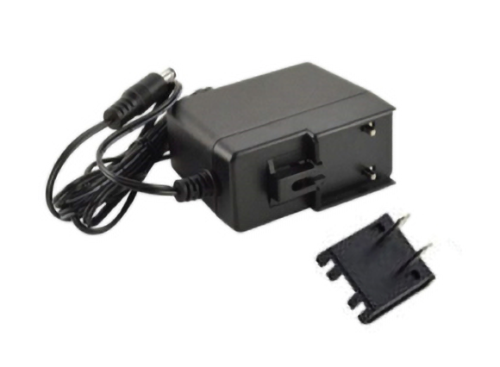

*Power Supply Sold Separately

Documentation
Default Default Title Document Type Date
Portfolio
  KV260 SOM Vision AI Starter Kit K26 Commercial SOM K26 Industrial SOM
Product Type Non-Production Product Fully Qualified and Certified Commercial Grade Production Module Fully Qualified and Certified Industrial Grade Production Module
Operating Temp Range 0°C to 35°C 0°C to 85°C –40°C to 100°C
Target Use Run Application Designs and Demos with Ease Smart Camera, Embedded Vision, Tracking & Identification Applications
Warranty 90 days 2 years 3 years
Expected Product Lifetime - 5 years 10 years
Price $199 $250 $350

accelerated applications

Pre-Built Hardware and Software Platform

Retail Analytics

Retail Analytics

Security

Security

Smart Camera

Smart Camera

Machine Vision

Machine Vision

Accelerated applications enable developers to program and differentiate their designs at the software level, without requiring FPGA programming experience. Paired with the KV260 Vision AI Starter Kit, production-ready accelerated applications can be up and running in under 1 hour, allowing developers to focus on differentiation and shortening the runway to volume deployment. Common edge vision applications are available today, with more on the way from Xilinx and a growing ecosystem of partners. Check out the Kria App Store to learn more.

Ready to scale your edge design?

Kria K26 System-on-Modules are ready for production deployment

Available in Commercial and Industrial grades, the Kria K26 Adaptive SOM is a small form factor card ideal for production deployment in Smart Camera, Embedded Vision, and other Security, Retail Analytics, Smart City, and Machine Vision applications.

Accelerate Your AI-Enabled Edge Solution with Adaptive Computing

Introducing Adaptive System-on-Modules

Learn all about adaptive SOMs, including examples of why and how they can be deployed in next-generation edge applications, and how smart vision providers benefit from the performance, flexibility, and rapid development that can only be achieved by an adaptive SOM.

Accelerate Your AI-Enabled Edge Solution with Adaptive Computing

Questions?

Ask our community of experts and superusers. Post your questions, find answers, and share your expertise with other developers on the Kria SOMs Forum.
