AR# 33599

11.x ChipScope Pro - "csejtag - The application failed to start because libCseCore.dll was not found. Re-installing the application may fix this problem."

Description

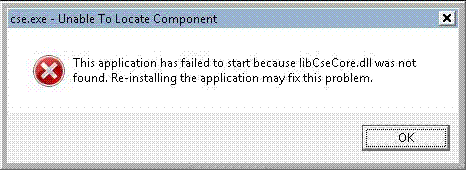

When I attempt to run some TCL commands using the ChipScope TCL engine, an error message appears:

Pop-up
Pop-up

How do I work around this issue?

Solution

You do not need to re-install. This issue is usually related to how your environment is setup.

Ensure that your %XILINX% and %CHIPSCOPE% environment variables point to a valid install.

Also, ensure that they are correctly set in your %PATH% and %LD_LIBRARY_PATH% environment variables.

For further information on setting up these variables, refer to the "Troubleshooting Guide" section of the ChipScope Pro Software and Cores User Guide:

http://www.xilinx.com/support/documentation/dt_chipscopepro_chipscope11-1.htm

AR# 33599
Date Created 10/01/2009
Last Updated 12/15/2012
Status Active
Type General Article
