Spartan-3A DSP Starter Kit - Ethernet PHY Interface Signals

Description

The Spartan-3A DSP Platform User Guide, UG454, lists the Ethernet PHY Interface Signals in Table 7, page 17. However, the data lines are not numbered - how should these signals be ordered?

Solution

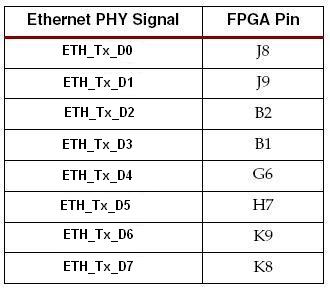

UG454, the Spartan-3A DSP Starter Platform User Guide, does not number the ETH_Tx_D signals; these can be listed as follows:
