AR# 40883

ML605 - UG534 Onboard Power Regulators

Description

In the ML605 Hardware User Guide v1.5 (UG534), Figure 1-28 shows the onboard power regulators for the ML605.This table shows U91 providing VCCAUX, while U43 provides VCCO rails.This information is incorrect.

Solution

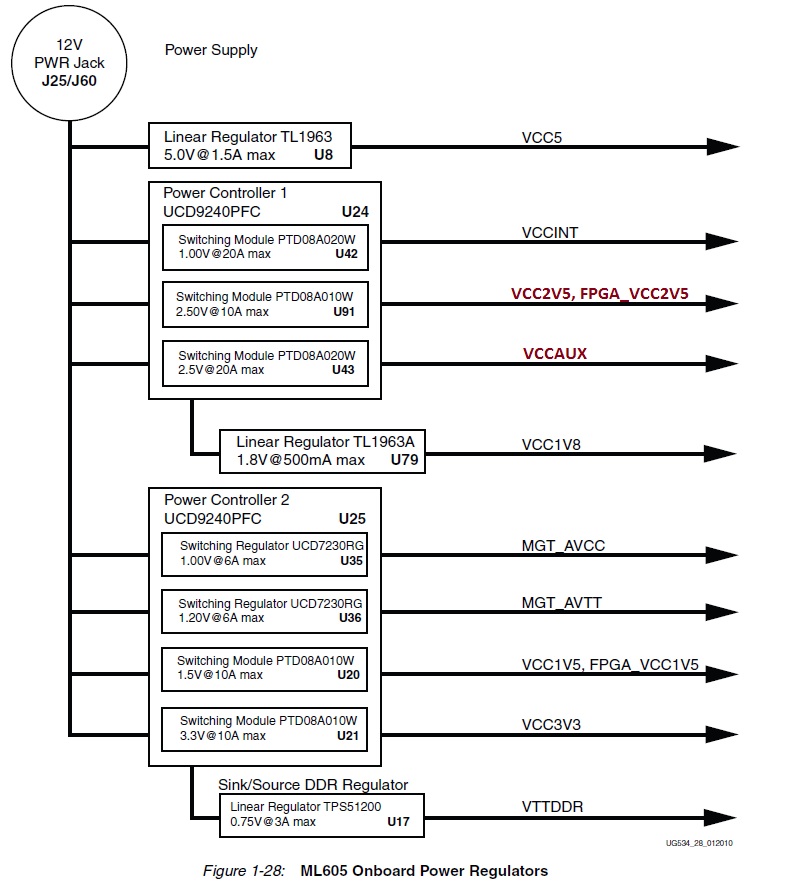

Figure 1-28, in theML605 Hardware User Guide v1.5 (UG534), incorrectly shows U91 providing VCCAUX, and U43 providing VCCO rails. The corrected version of this figure should show the following:

Figure 1-28 has been updatedand is correct in v1.6 of UG534, ML605 Hardware User Guide.

Linked Answer Records

Master Answer Records

Answer Number Answer Title Version Found Version Resolved
34836 Virtex-6 FPGA ML605 Evaluation Kit - Known Issues and Release Notes Master Answer Record N/A N/A
AR# 40883
Date Created 03/01/2011
Last Updated 12/15/2012
Status Active
Type General Article
Boards & Kits
  • Virtex-6 FPGA ML605 Evaluation Kit
