Industrial applications are perpetually seeking the right answer, on time. Deterministic, low latency computation and communication in Xilinx SoCs and FPGAs are ideal for converged IT/OT Gateways and Fog Computing in traditional industrial environments or smart cities. Whatever mix of edge processing to complement the cloud, bridging of wired and wireless communication protocols, including software-defined baseband processing, and I/O connections to diverse sensors an application requires, a Xilinx solution will be anchored in a strong hardware root of trust for robust cybersecurity.

A subset of Xilinx capabilities is represented in the expanding APICS demo platform which includes:

Connectivity from Ethernet POWERLINK to OPC UA over Time-Sensitive Networking (TSN) bridged to DDS over TSN to general purpose I/O
Compliance for IEC 62443 cybersecurity, including secure and measured boot with remote attestation, secure cloud enrollment, communications and update
Distributed Machine Learning using container technology from cloud to edge over wired or wireless network
Single chip-PLC with an IEC 61131-3 compliant solution

For more information on Xilinx gateway solutions, including support for AWS FAAS (FPGA as a Service), please contact apics@xilinx.com

Design Examples	Description	Device Support

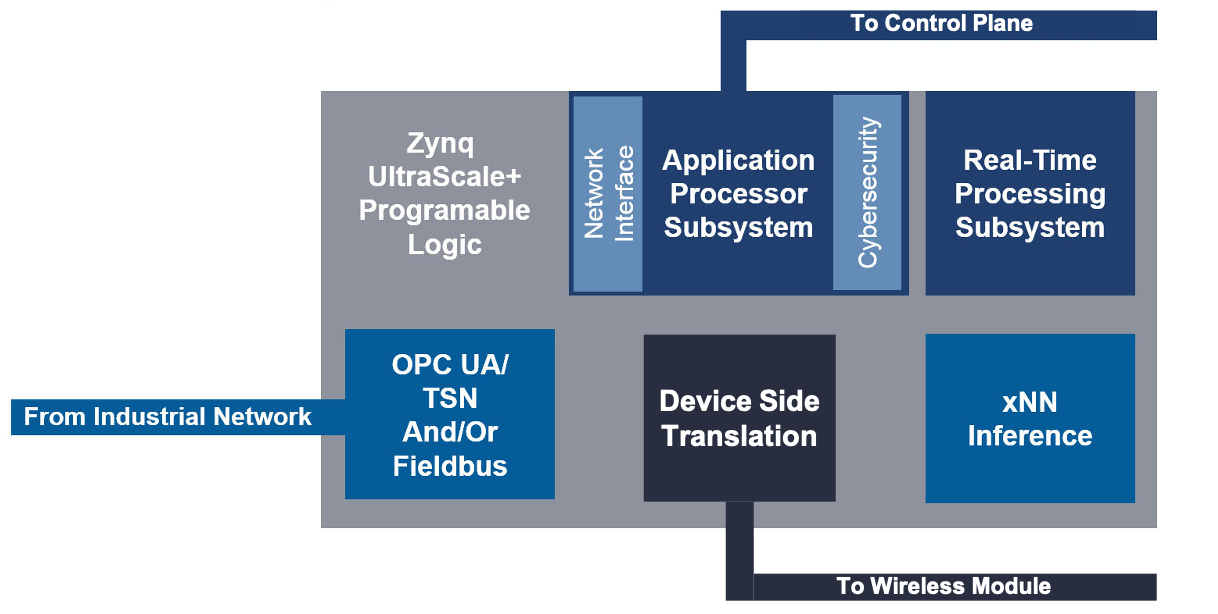

Click to enlarge	ARM Processing System for Network Interface and Cybersecurity Stack Programmable Logic for Industrial Ethernet communication, Software-Defined Radio baseband processing, Cryptographic Offloading Functions, Real-time Sensor Fusion and Interface, xNN inference Engine	Zynq UltraScale+ CG, EG, EV MPSoC Zynq-7000 SoC Zynq-7000S SoC
Click to enlarge	PCIe connection to x86 Processor(s) ARM Processing System for Operation Technology Communication Ingestion, IoT Local Sensor Data, Dynamic Accelerator Manager Programmable Logic for Industrial Ethernet Communication, Cryptographic Offloading Functions, Real-time Sensor Fusion and Interface, Database Acceleration, xNN inference Engine, Reconfigurable HW Accelerators	Zynq UltraScale+ MPSoC
