ALINX AX7Z035 with an AMD Zynq 7000 SoC XC7Z7035 FPGA Development Kit Board

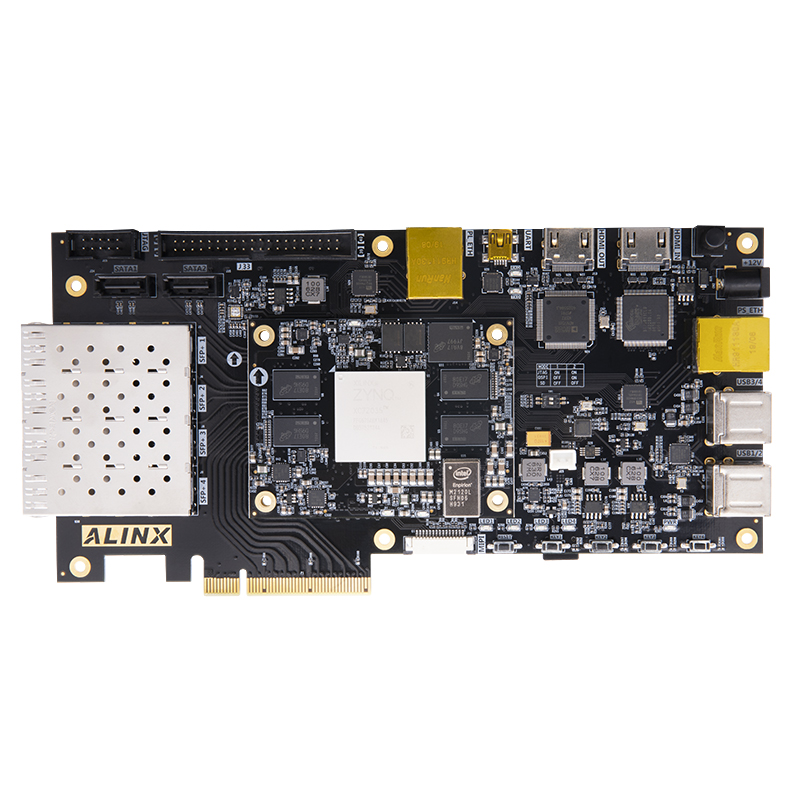

ALINX AX7Z035: with an AMD Zynq 7000 SoC XC7Z7035 FPGA Development board, “SOM AC7Z035B module + Carrier Board”, which is convenient to use the SOM core board for secondary development. it features embedded processing with Dual ARM Cortex-A9 core processors. The AX7Z035 industrial FPGA board includes all the basic components of hardware, and pre-verified reference designs, the carrier board with PCIe 2.0 x4, 4SFP, Gigabit Ethernet, HDMI Input and Output, USB 2.0 Host, Uart, SD Card Slot, 40-Pin Connectors (expansion opportunities with ALINX Module, such as AD/DA data acquisition module, camera and LCD module). The AX7Z035 FPGA Board is suitable for PCIe, video image processing, optical fiber communication and Ethernet communication, etc.


Key Features and Benefits

  • FPGA: Zynq 7000 FPGA, XC7Z7035-2FFG676I
  • Embedded Dual-Core ARM Cortex-A9 Processor
  • PS Terminal 1GByte DDR3, 32bit, 1600Mbps
  • PL Terminal 1GByte DDR3, 32bit, 1066Mbps
  • 64MByte QSPI Flash, 8GByte EMMC
  • PCIe 2.0 x 8 Interface, Single Channel up to 5G Baud
  • 4 SFP + Optical Fiber Interfaces, The Transmission Rate Can be up to 10Gbps
  • Integrated Gigabit Ethernet, USB, HDMI Input and Output, SD Card Slot
  • Provide Documents in PDF (Schematic, PCB, Chip Datasheet and User Manual)
  • Provide Verilog HDL Demos and Supporting Tutorials, Easier to Get Started With

What's Included

  • 12V 3A DC Adaptor
  • ALINX Brand Customized Cooling fan (Fixed on the Board)
  • ALINX Brand Xilinx Platform Cable USB (Programmer Loader)
  • AX7Z035 FPGA Development Board
  • Mini USB Cable
  • PCIe Protection Fence
  • TF Card and Card Reader
  • Transparent Protection Board (Fixed on the Board)
