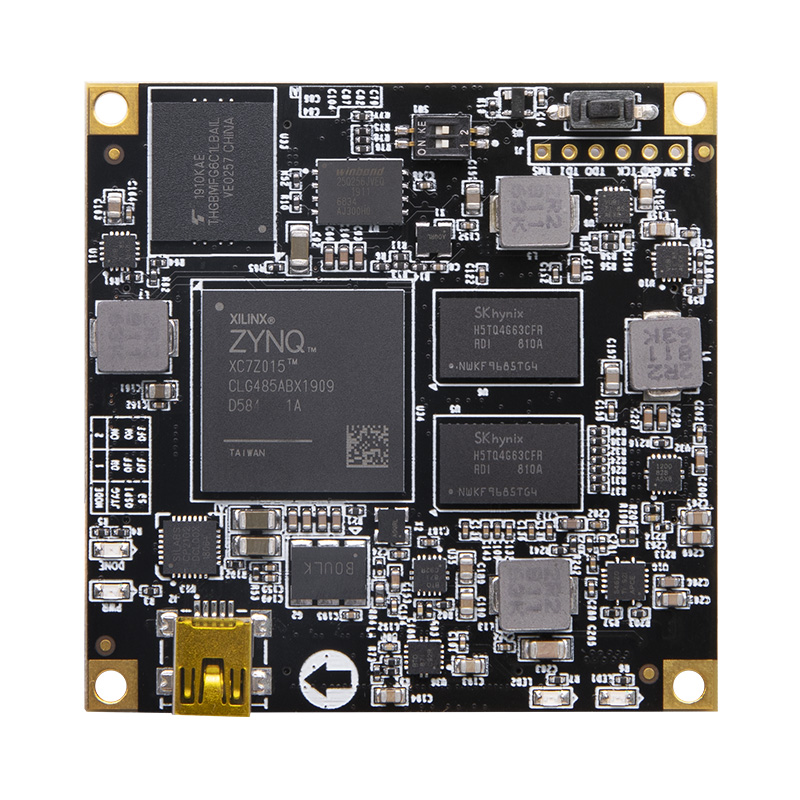

ALINX SoM AC7015B: SoC Industrial Grade Module

The ALINX AC7015B SoC with an AMD Zynq 7000 XC7Z015 FPGA Core Board includes all the basic components of hardware. Supports embedded processing with Dual ARM Cortex-A9 core processors. FPGA core board is the minimum system. USB power supply.


Key Features and Benefits

  • FPGA: XC7Z015-2CLG485I
  • ARM Cortex™-A9
  • PS Terminal 1GB DDR3, 32bit
  • 8GB eMMC
  • 32MB FLASH
  • Logic Cells 74K
  • High Speed GTX x 4
  • PCIE Gen2 x 4
  • 148 IOs
  • 39 MIOs
  • AD Converter x 2, 1Mbps
  • Speed Grade -2
  • Industrial Grade
  • Working Temperature -40 ℃ to 85 ℃
  • Size: 2.36 * 2.36 inch

What's Included

  • AC7015B FPGA Core Board
  • Mini USB Cable
