ALINX AX7015B with AMD Zynq 7000 SoC XC7Z015 FPGA Development Kit board

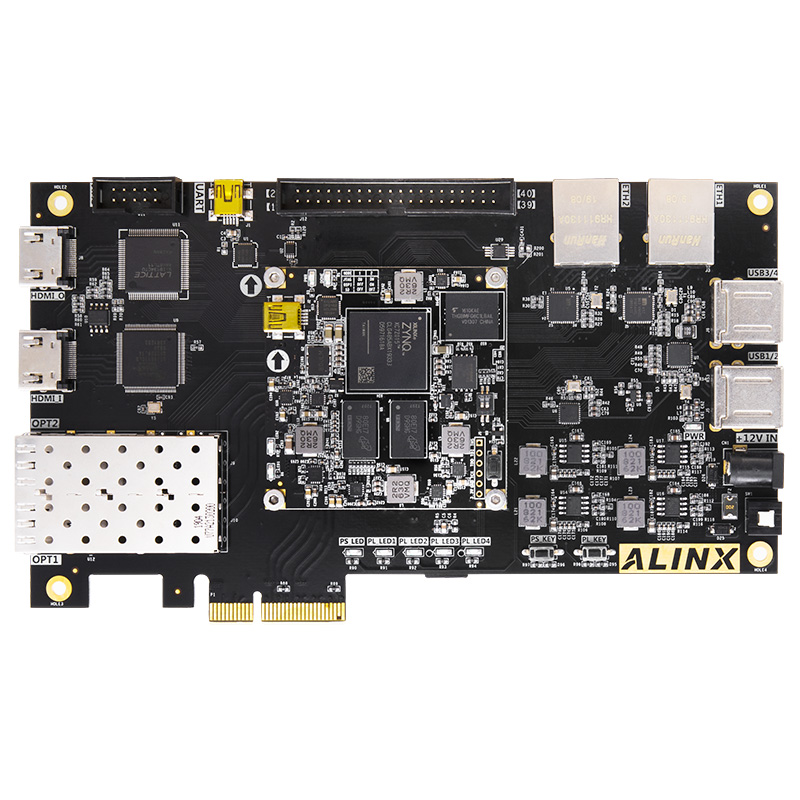

ALINX AX7015B: with an AMD Zynq 7000 SoC XC7Z015 FPGA Development board, “SOM AC7015B module + Carrier Board”, which is convenient to use the SOM for secondary development. It features embedded processing with Dual ARM Cortex-A9 core processors. The AX7015 industrial FPGA board includes all the basic components of hardware, and pre-verified reference designs, the carrier board with PCIex2, 2*SFP, 2*Gigabit Ethernet, 4*USB2.0, HDMI Input, HDMI Output, Uart, SD card Slot, 40-Pin Connectors (expansion opportunities with ALINX Module, such as AD/DA data acquisition module, camera and LCD module).

The AX7015 FPGA Board is suitable for PCIe, video image processing, optical fiber communication and Ethernet communication, etc.


Key Features and Benefits

  • FPGA: AMD Zynq 7000 FPGA, XC7Z015-2CLG485I
  • Embedded Dual-Core ARM Cortex-A9 Processor
  • 1GByte DDR3, 32bit, 1066Mbps
  • 32MByte QSPI Flash, 8GByte EMMC
  • PCIe 2.0 x 2 Interface, Single Channel up to 5G Baud
  • Integrated 2 Gigabit Ethernet, USB, HDMI, SD Card Slot
  • 2 SFP Optical Fiber Interfaces, The Transmission Rate can be up to 6Gbps
  • Provide Documents in PDF (Schematic, PCB, Chip Datasheet and User Manual)
  • Provide Verilog HDL Demos and Supporting Tutorials, Easier to Get Started Wit

What's Included

  • 12V 3A DC Adaptor
  • ALINX Brand Xilinx Platform Cable USB (Programmer Loader)
  • AX7015 FPGA Development Board
  • Mini USB Cable
  • TF Card and Card Reader
